Torque wrenches
ISO 6789, DIN 3122, EN 26789

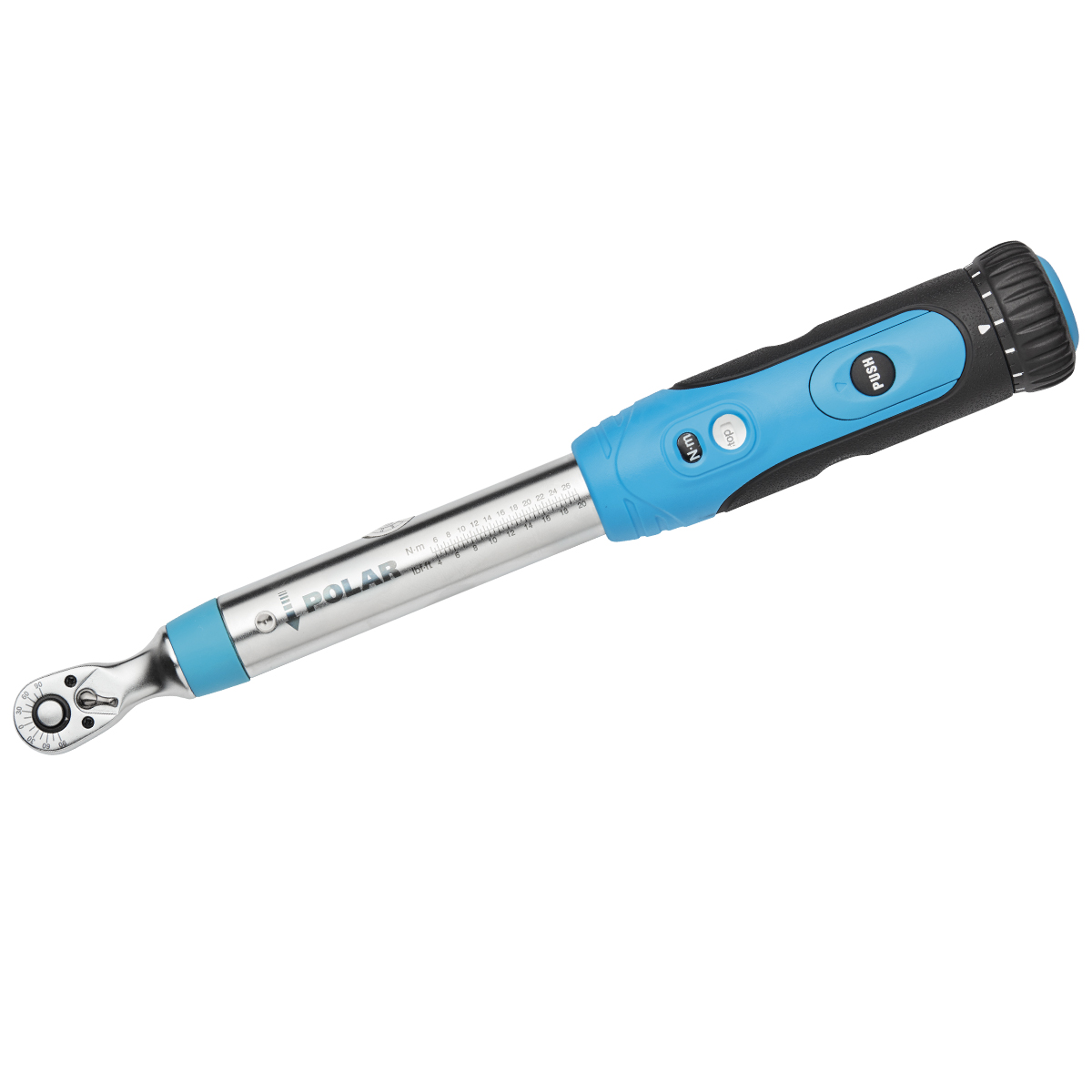

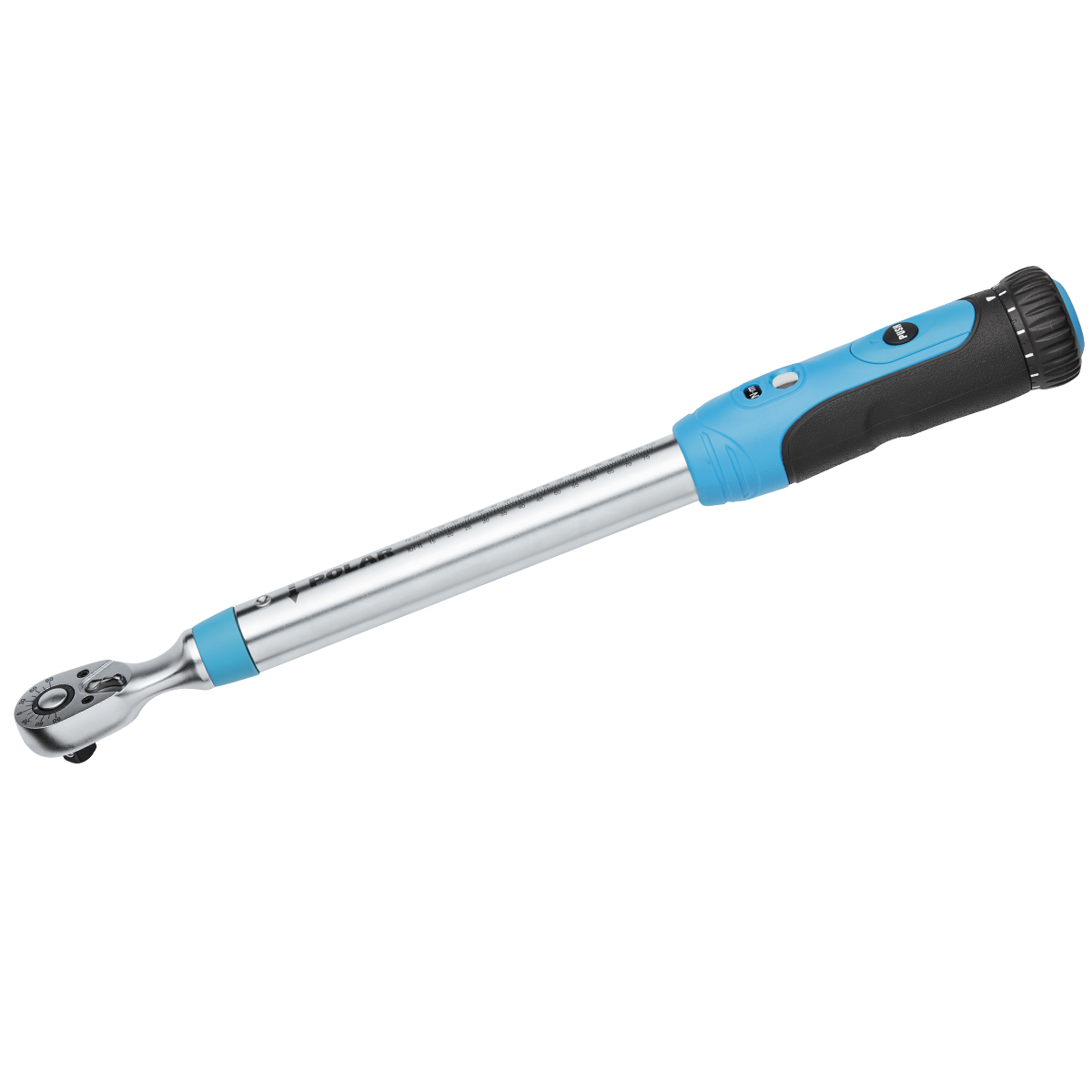

Adjustable torque wrench with reversible 48 teeth ratchet.

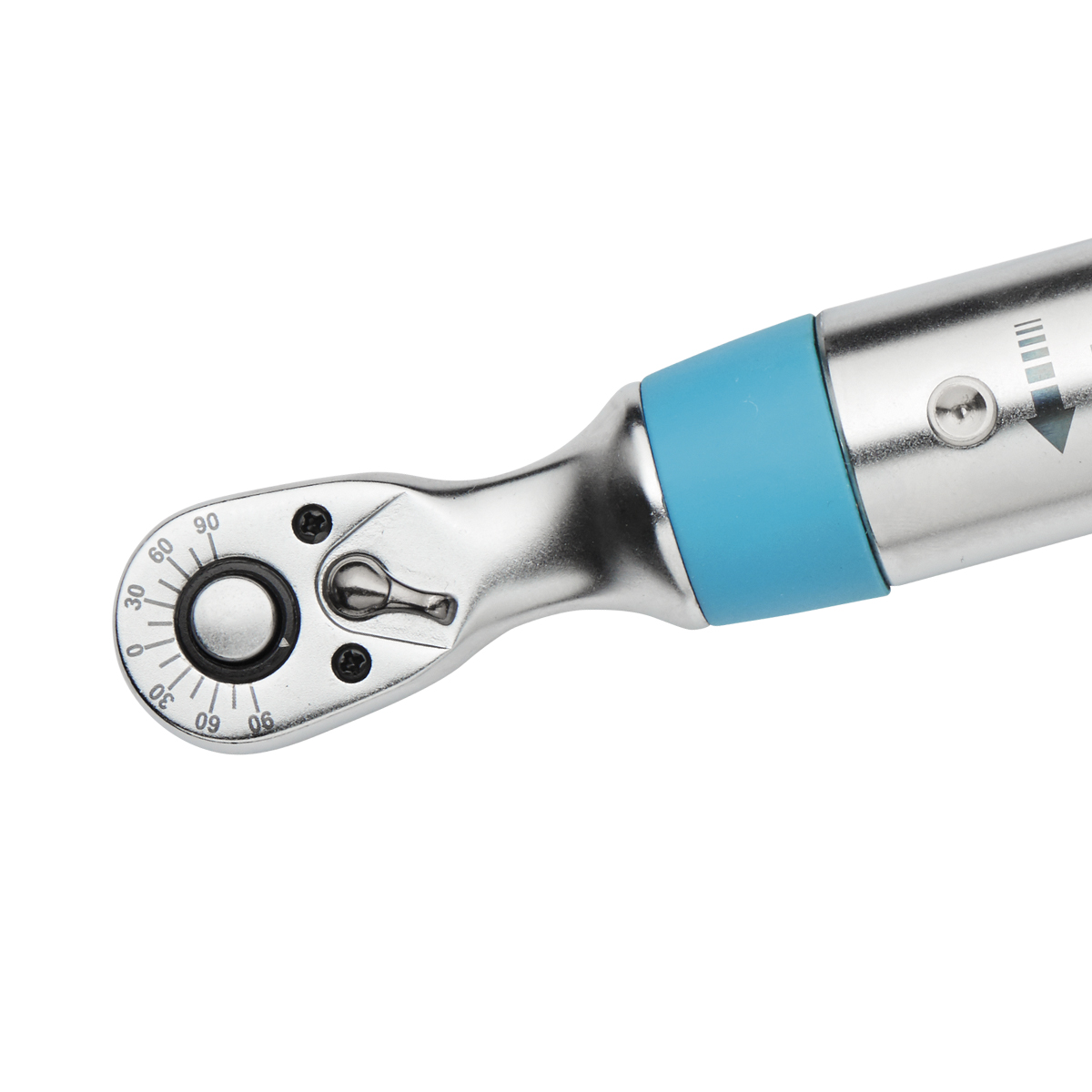

Angle indication printed on ratchet head for tightenings with angle control.
Precision: ± 3% (1/4”, 3/8”, 1/2”) and ± 4% (3/4”).
Click-signal on reaching preset torque value.
Supplied with calibration certificate.
Wrench is supplied in protective plastic case.
Adjustable torque wrench with reversible 48 teeth ratchet.
Angle indication printed on ratchet head for tightenings with angle control.
Precision: ± 3% (1/4”, 3/8”, 1/2”) and ± 4% (3/4”).
Click-signal on reaching preset torque value.
Supplied with calibration certificate.
Wrench is supplied in protective plastic case.
| Capacity Nm | Item no. | Increments Nm | Ext. square | L mm | Weight (g) |
|---|---|---|---|---|---|
| 5-25 | 7114-1025 | 0,1 | 1/4“ | 323 | 760 |
| 10-50 | 7138-1050 | 0,5 | 3/8" | 400 | 1000 |
| 20-100 | 7138-1100 | 0,5 | 3/8" | 400 | 1000 |
| 40-200 | 7112-1200 | 0,5 | 1/2” | 517 | 1400 |
| 60-340 | 7112-1340 | 1 | 1/2” | 620 | 1700 |
| 110-550 | 7134-1550 | 2,5 | 3/4” | 918 | 4500 |
| 150-750 | 7134-1750 | 2,5 | 3/4” | 1210 | 5800 |
