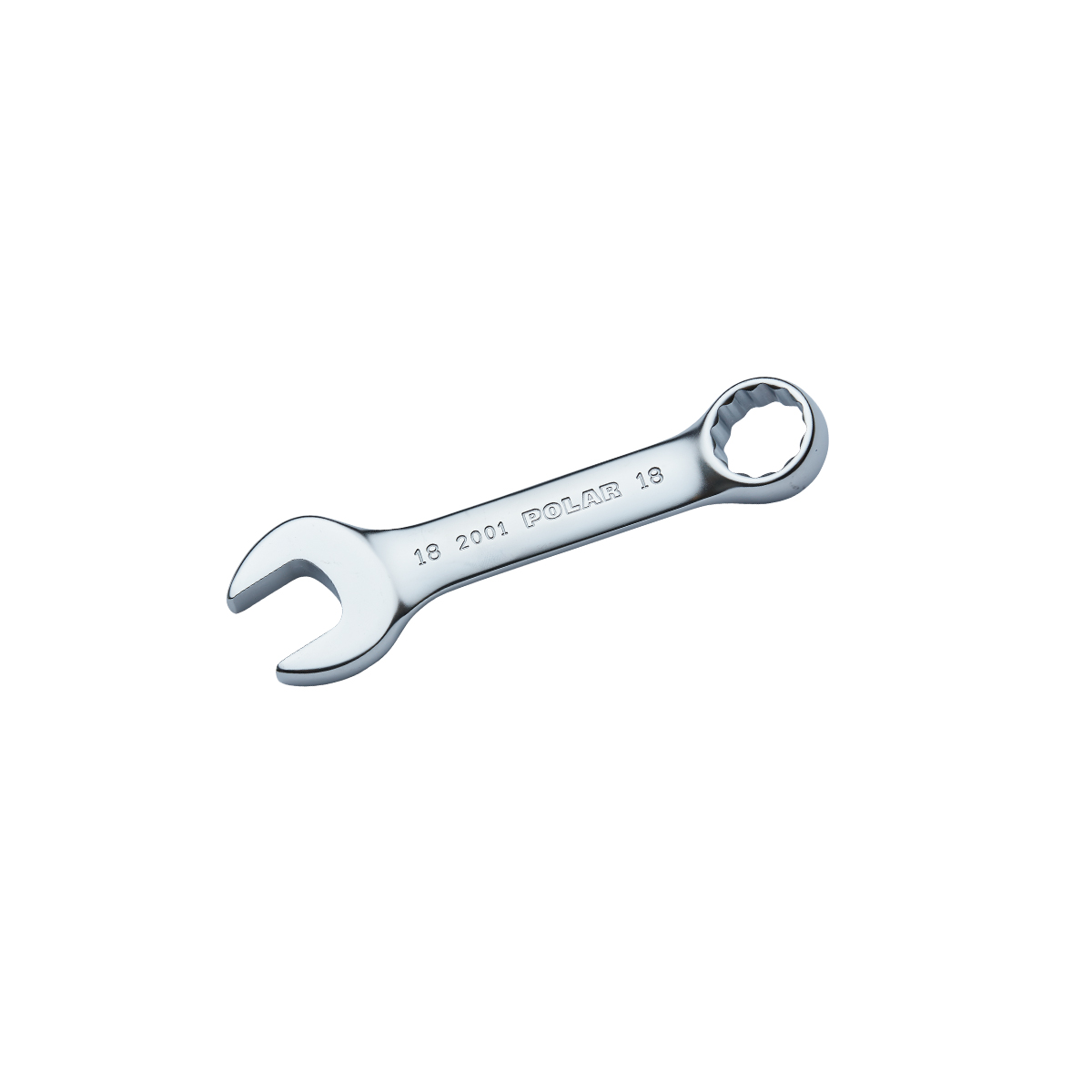

Stubby metric combination wrenches
ISO 3318, DIN 3113.
12-Point ring angled at 15°. Open end angled at 15°.
Surface: Satin chrome finish.
Material: Chrome-vanadium steel.
12-Point ring angled at 15°. Open end angled at 15°.
Surface: Satin chrome finish.
Material: Chrome-vanadium steel.

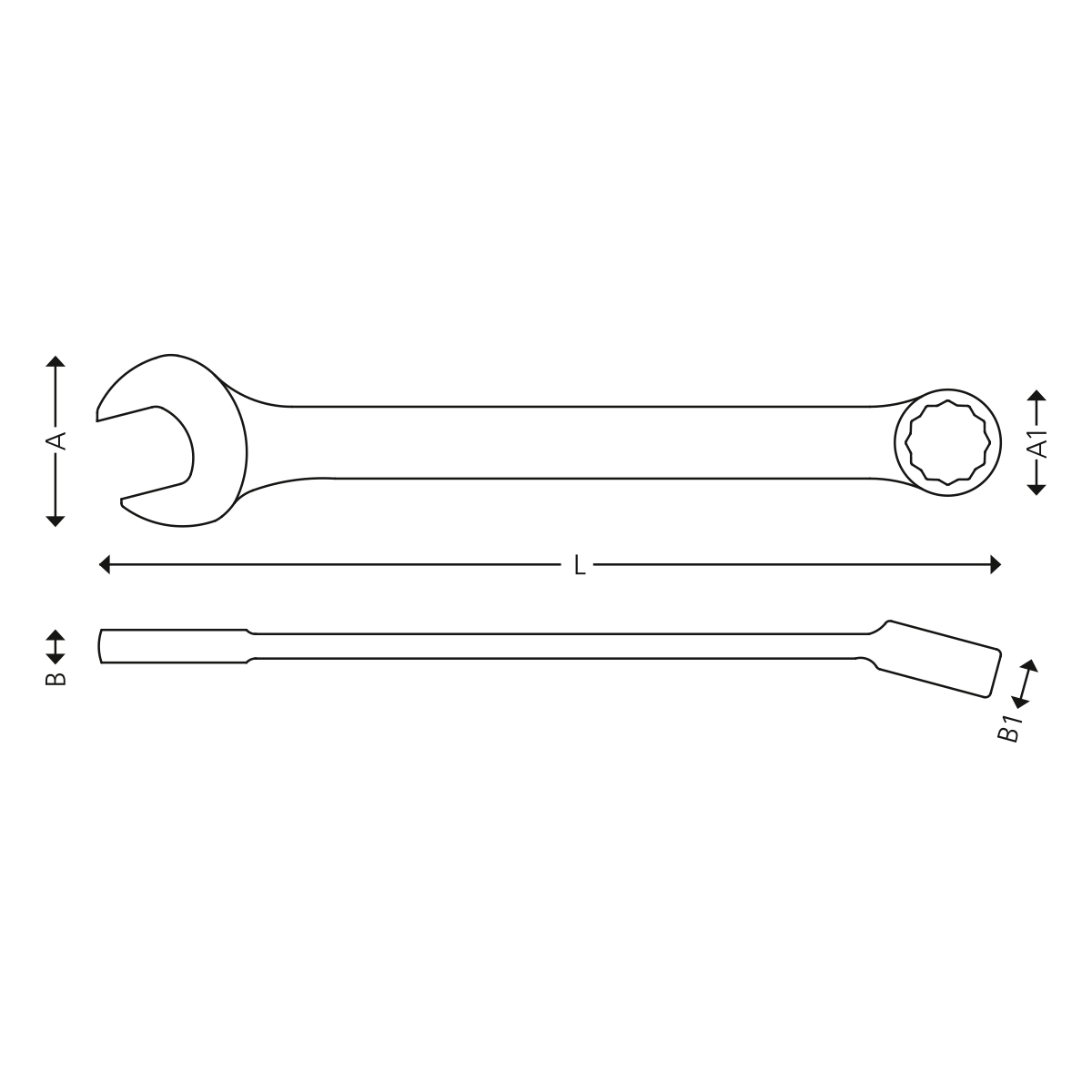

| Size mm | Item no. | A mm | A1 mm | B mm | B1 mm | L mm | Weight (g) | |
|---|---|---|---|---|---|---|---|---|
| 10 | 2001-0010 | 21,0 | 15,0 | 6,0 | 7,8 | 96 | ||
| 11 | 2001-0011 | 23,5 | 17,2 | 6,5 | 7,8 | 100 | 40 | |
| 12 | 2001-0012 | 25,2 | 18,2 | 7,0 | 8,3 | 104 | 50 | |
| 13 | 2001-0013 | 26,2 | 19,5 | 7,0 | 8,9 | 108 | 50 | |
| 14 | 2001-0014 | 29,5 | 21,9 | 7,3 | 8,9 | 114 | 70 | |
| 15 | 2001-0015 | 13 | 22,8 | 7,5 | 10,0 | 117 | 76 | |
| 16 | 2001-0016 | 24,0 | 8,5 | 10,5 | 122 | 84 | ||
| 17 | 2001-0017 | 35,9 | 25,3 | 8,2 | 11,0 | 128 | 102 | |
| 18 | 2001-0018 | 37,6 | 26,5 | 8,5 | 11,0 | 131 | 112 | |
| 19 | 2001-0019 | 39,5 | 27,5 | 8,9 | 11,5 | 137 | 122 |
