Item no. 9353-0052

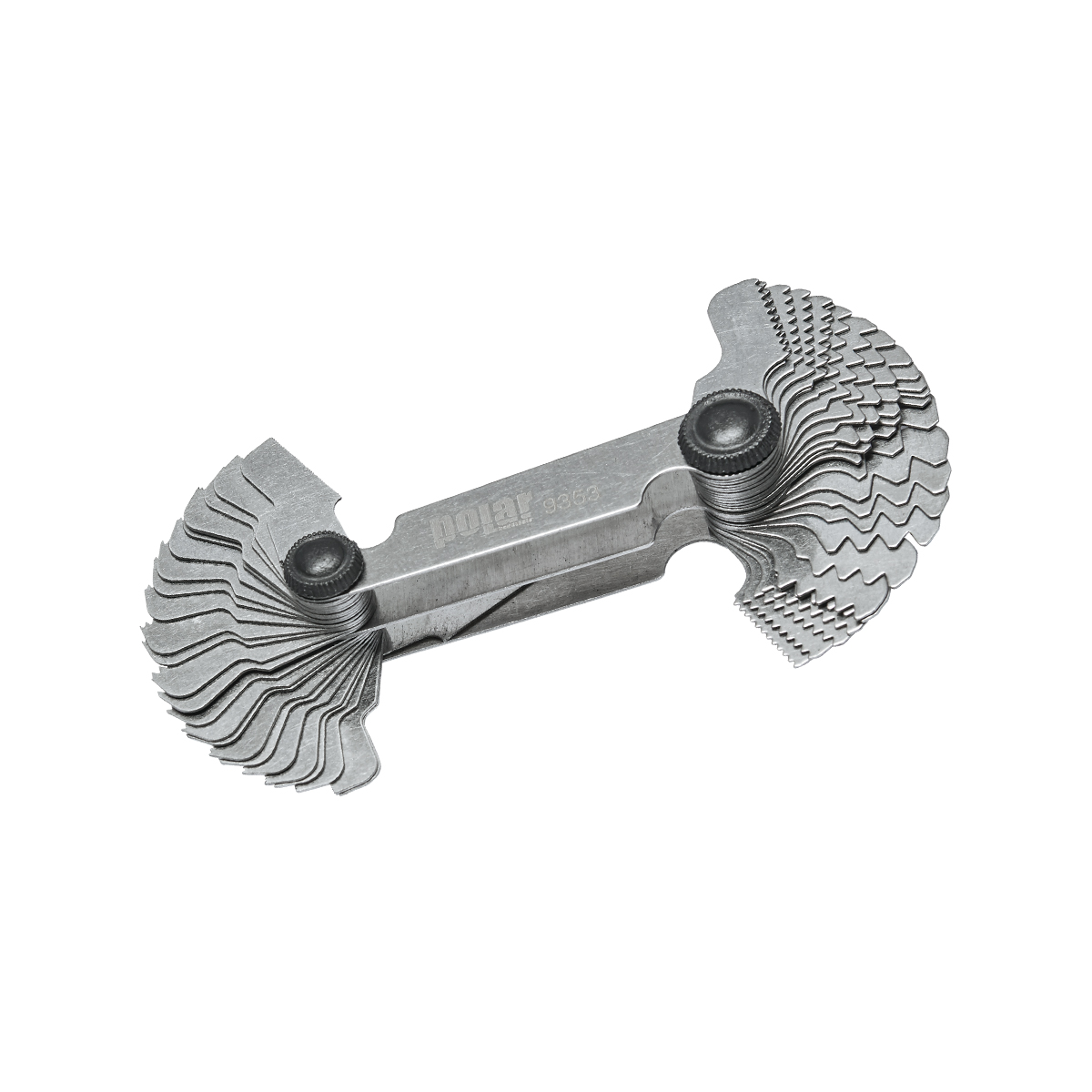

Screw Pitch Gauge

DIN 13/14
For inside and outside measurement.
Blades for 60° metric ISO thread and 55° Whitworth thread.
Material: Hardened spring steel.
  • Blades 24 (0.25-6.00 mm) / 28 (4-62 TPI)
  • Range 0,25-0,30-0,35-0,40-0,45-0,50-0,60-0,70-0,75-0,80-0,90-1,00-1,25-1,50-1,75-2,00-2,50-3,00-3,50-4,00-4,50-5,00-5,50-6,00 mm / 4-4,5-5-6-7-8-9-10-11-12-13-14-16-18-19-20-22-24-25-26-28-30-32-36-40-48-60-62 TPI
  • 65
