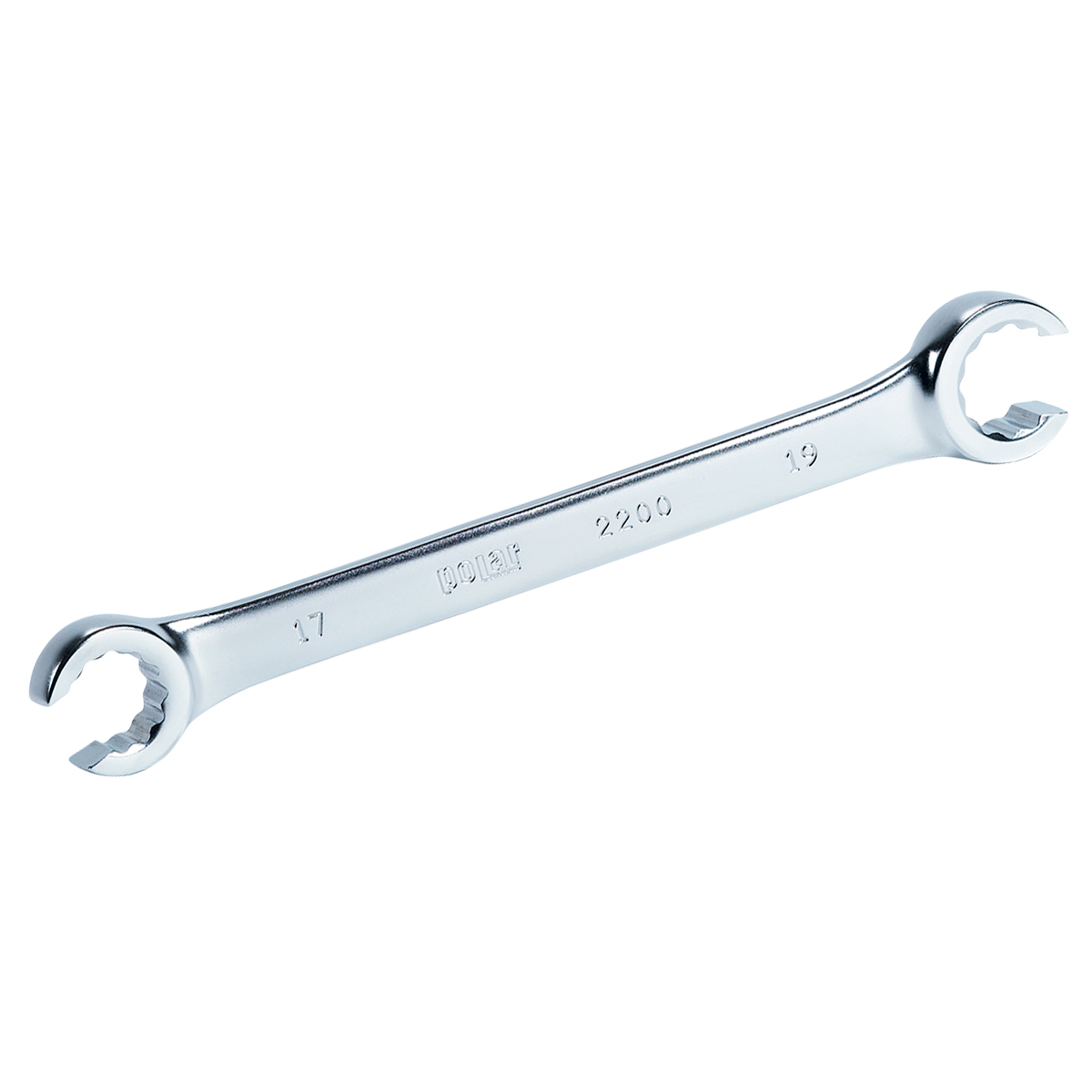

Metric flare nut wrenches
DIN 3118.
Open ring angled at 15°.
Head angled at 15°.
Hexagonal profile up to size 12x14 mm and bihexagonal profile for larger sizes.
Surface: Satin chrome finish. Material: Chrome-vanadium steel.
Open ring angled at 15°.
Head angled at 15°.
Hexagonal profile up to size 12x14 mm and bihexagonal profile for larger sizes.
Surface: Satin chrome finish. Material: Chrome-vanadium steel.

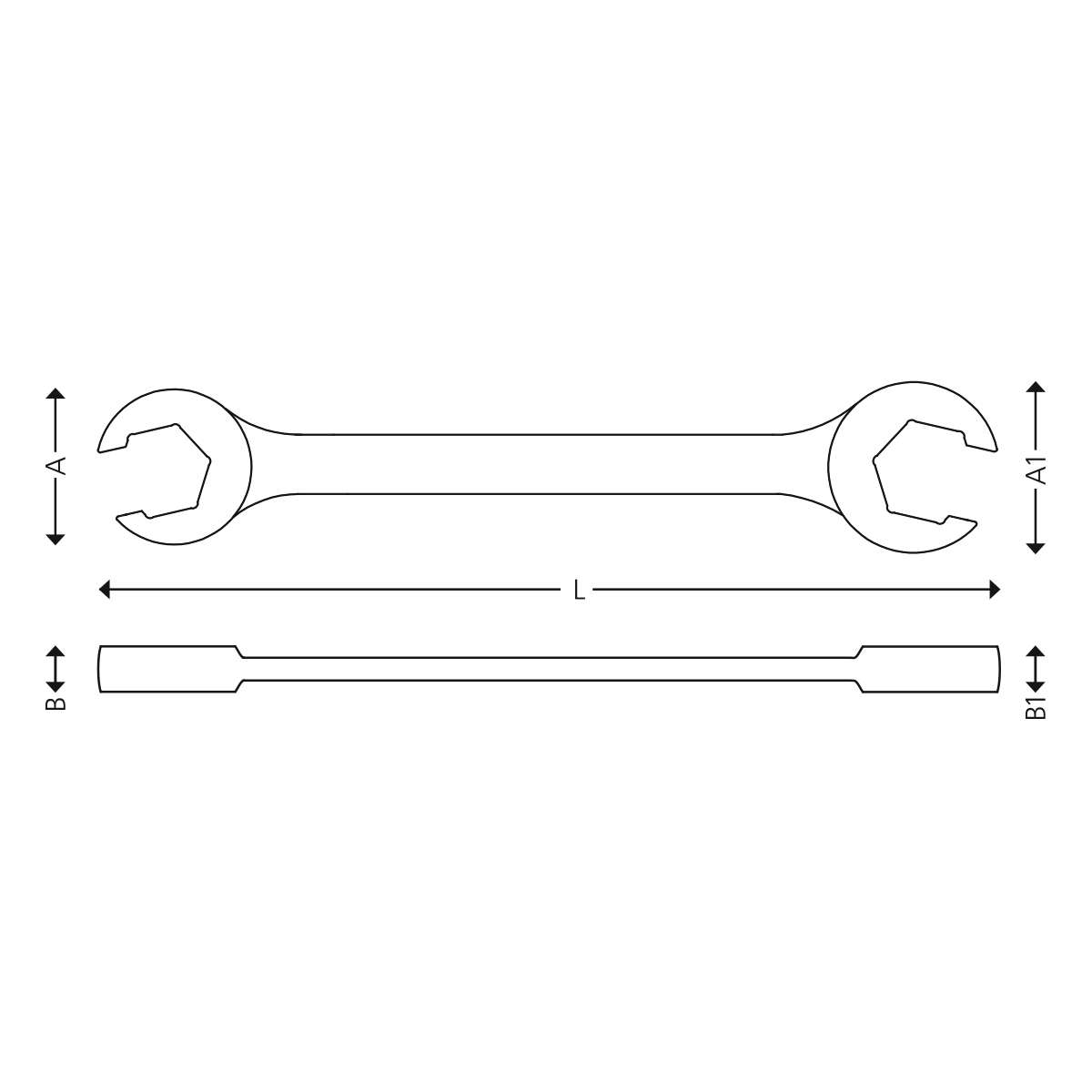

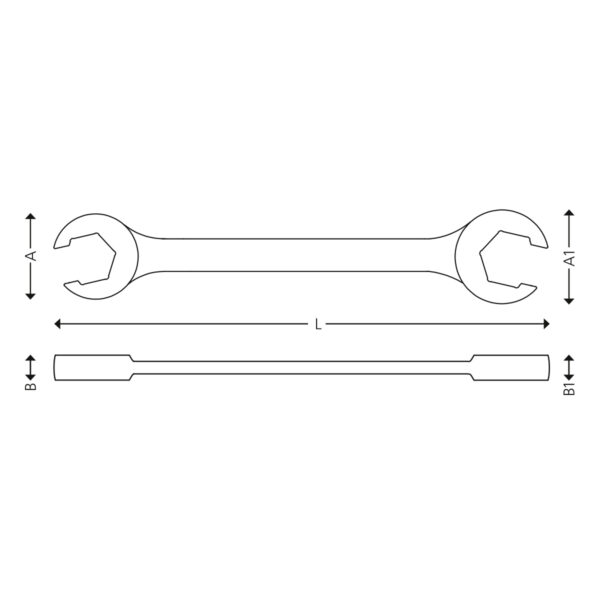

| Size mm | Item no. | A mm | A1 mm | B mm | B1 mm | L mm | Weight (g) | |
|---|---|---|---|---|---|---|---|---|
| 8 x 10 | 2200-0810 | 18,4 | 20,8 | 7,0 | 8,5 | 145 | 47 | |
| 9 x 11 | 2200-0911 | 20,8 | 22,6 | 8,5 | 9,0 | 152 | 60 | |
| 11 x 13 | 2200-1113 | 22,6 | 25,0 | 9,0 | 10,5 | 165 | 78 | |
| 12 x 14 | 2200-1214 | 25,0 | 27,4 | 9,5 | 11,0 | 178 | 120 | |
| 17 x 19 | 2200-1719 | 30,0 | 32,5 | 12,0 | 14,0 | 210 | 180 | |
| 19 x 22 | 2200-1922 | 32,5 | 38,0 | 14,0 | 16,0 | 233 | 240 | |
| 22 x 24 | 2200-2224 | 38,0 | 41,0 | 16,0 | 17,0 | 252 | 300 | |
| 24 x 27 | 2200-2427 | 41,0 | 45,0 | 17,0 | 18,0 | 265 | 350 | |
| 30 x 32 | 2200-3032 | 48,5 | 51,0 | 21,0 | 23,0 | 285 | 470 | |
| 36 x 41 | 2200-3641 | 58,0 | 65,0 | 25,0 | 27,0 | 350 | 820 |
