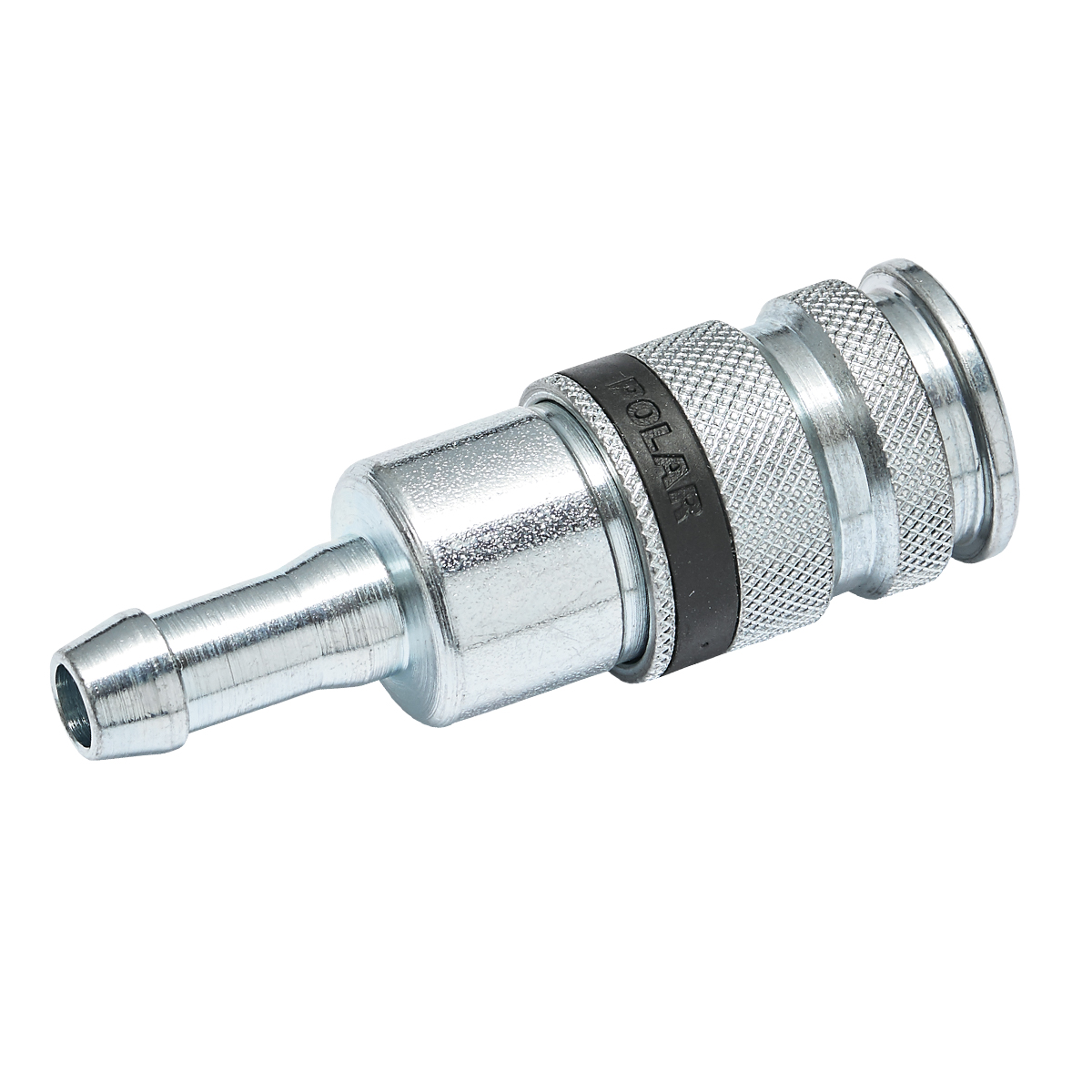

ISO 6150 B-profil couplings

ISO 6150 B couplings are for heavy-duty use and produced in strong and impact-resistant quality materials. Because of an optimized valve system the couplings have a low drop of pressure.
The couplings are pressed together to prevent leaks and have an easy connecting and disconnecting – so easy that it can be done with one hand.
Max. working pressure: 25 bar.
Burst pressure: 150 bar.
Operating temperature: -20°C ~ 60°C
Flow diameter: 5,5 mm
Standard: US-MIL-C 4109, 1/4", ISO 6150 B, 1/4"
Connectable with the following: Atlas Copco Q8, Cejn 310, Hansen 1000, Rectus-Tema 23 and 24 and many more.
Material: Steel, el. galvanized
Connection Item no. Weight (g)
1/4" (6mm) hose con. 6953-2014100
5/16" (8mm) hose con. 6953-2516100
3/8" (10mm) hose con. 6953-2038106
1/2" (13mm) hose con. 6953-2012100
