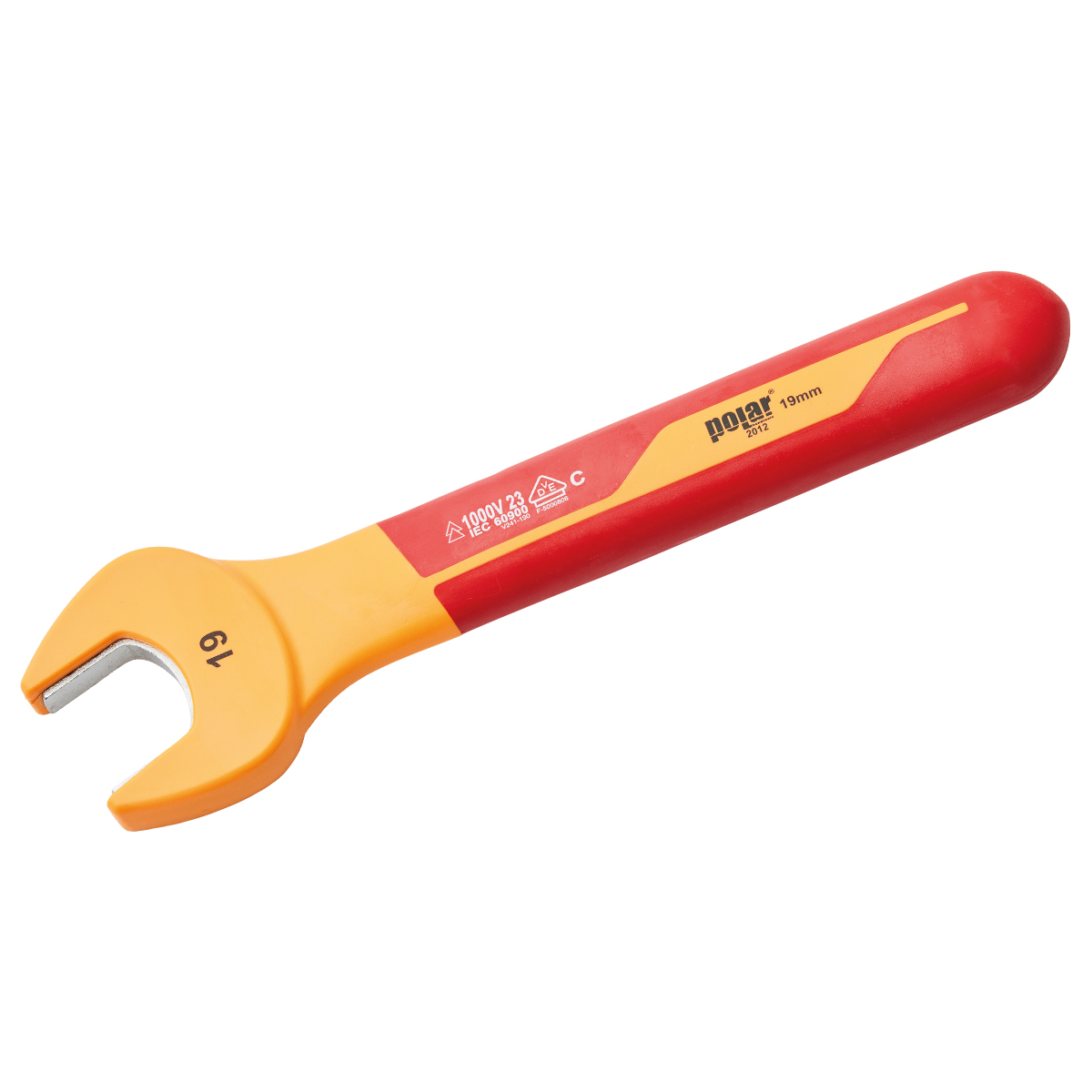

Insulated open end wrenches
ISO 10102, DIN 3110.
Every tool is individually tested to protect up to 1000V AC.
VDE approved.
Open end angled at 15°.
Material: Chrome-vanadium steel.
Every tool is individually tested to protect up to 1000V AC.
VDE approved.
Open end angled at 15°.
Material: Chrome-vanadium steel.

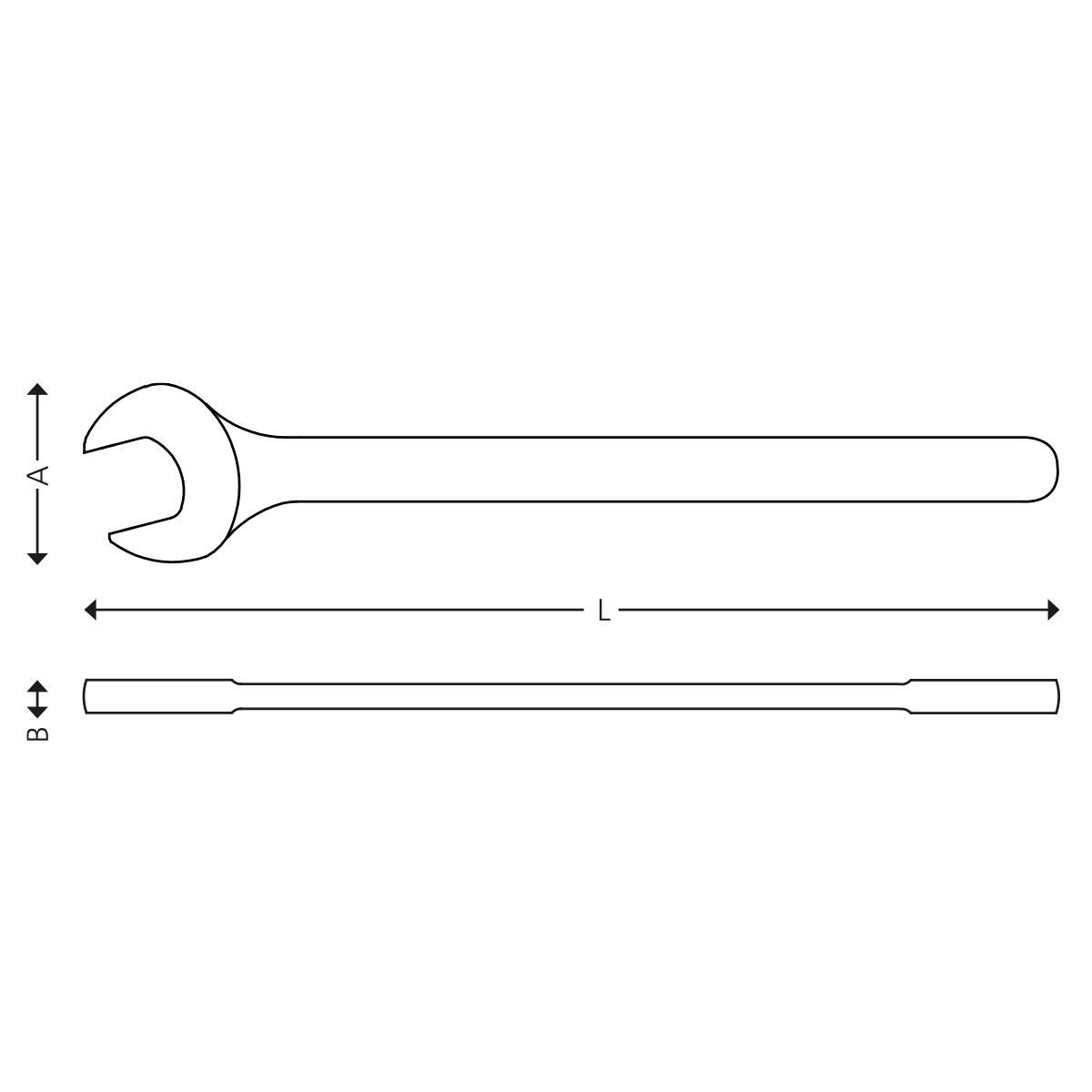

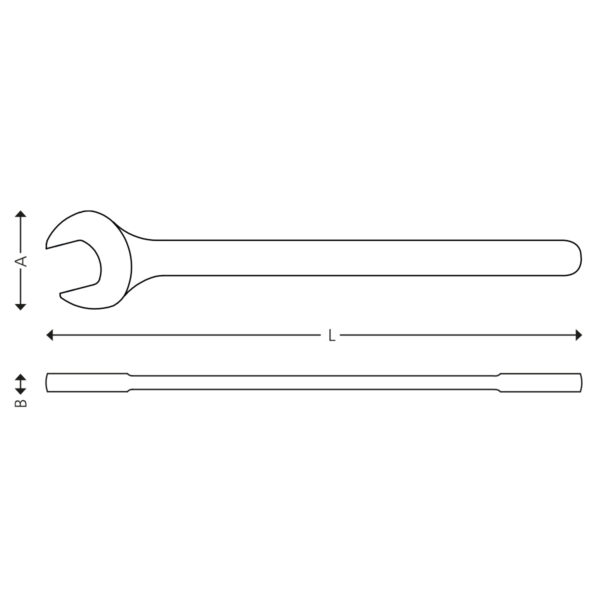

| Size mm | Item no. | A mm | B mm | L mm | Weight (g) | |
|---|---|---|---|---|---|---|
| 8 | 2012-8008 | 25,0 | 8,0 | 102,0 | 28 | |
| 10 | 2012-8010 | 28,8 | 9,0 | 112,0 | 41 | |
| 11 | 2012-8011 | 28,8 | 9,0 | 112,0 | 62 | |
| 12 | 2012-8012 | 33,0 | 9,8 | 130,0 | 61 | |
| 13 | 2012-8013 | 33,0 | 9,8 | 130,0 | 63 | |
| 14 | 2012-8014 | 36,8 | 10,0 | 152,0 | 82 | |
| 15 | 2012-8015 | 36,8 | 10,0 | 152,0 | 80 | |
| 17 | 2012-8017 | 36,8 | 11,3 | 162,5 | 105 | |
| 19 | 2012-8019 | 36,8 | 11,6 | 177,5 | 135 | |
| 22 | 2012-8022 | 36,8 | 13,2 | 197,5 | 188 | |
| 24 | 2012-8024 | 36,8 | 15,0 | 222,5 | 251 |
