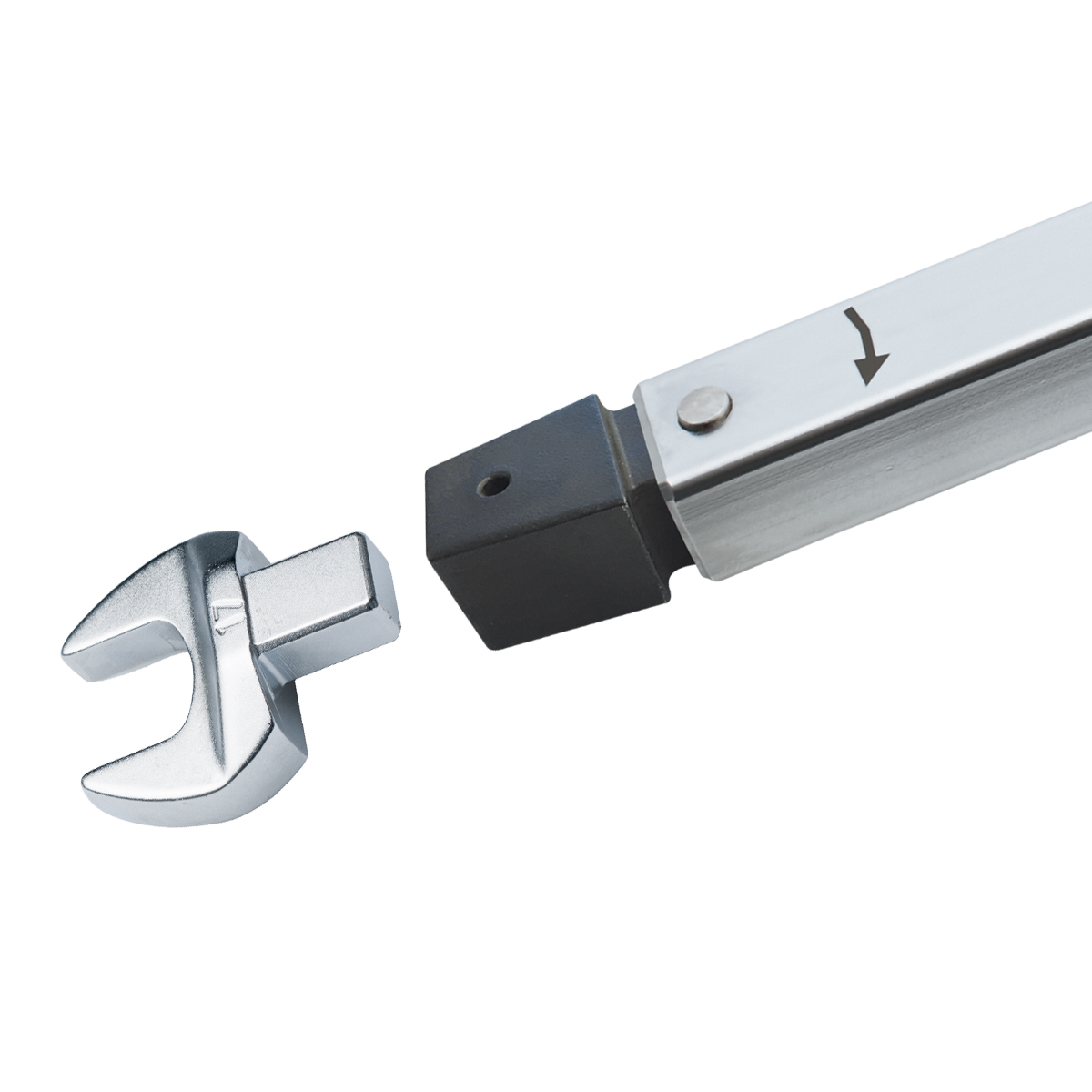

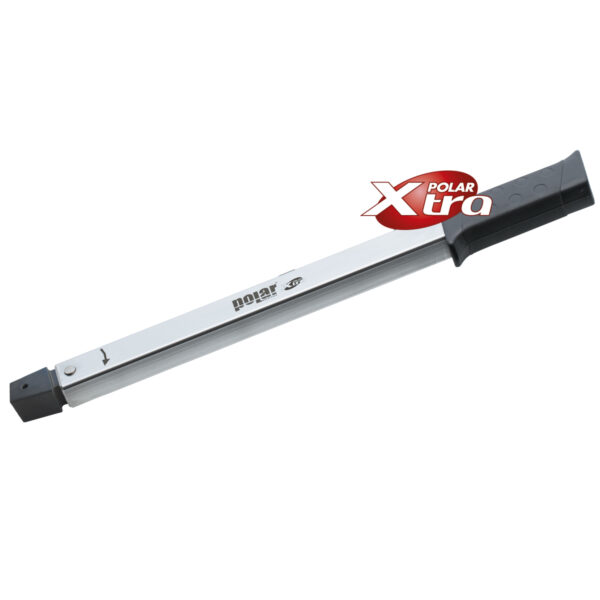

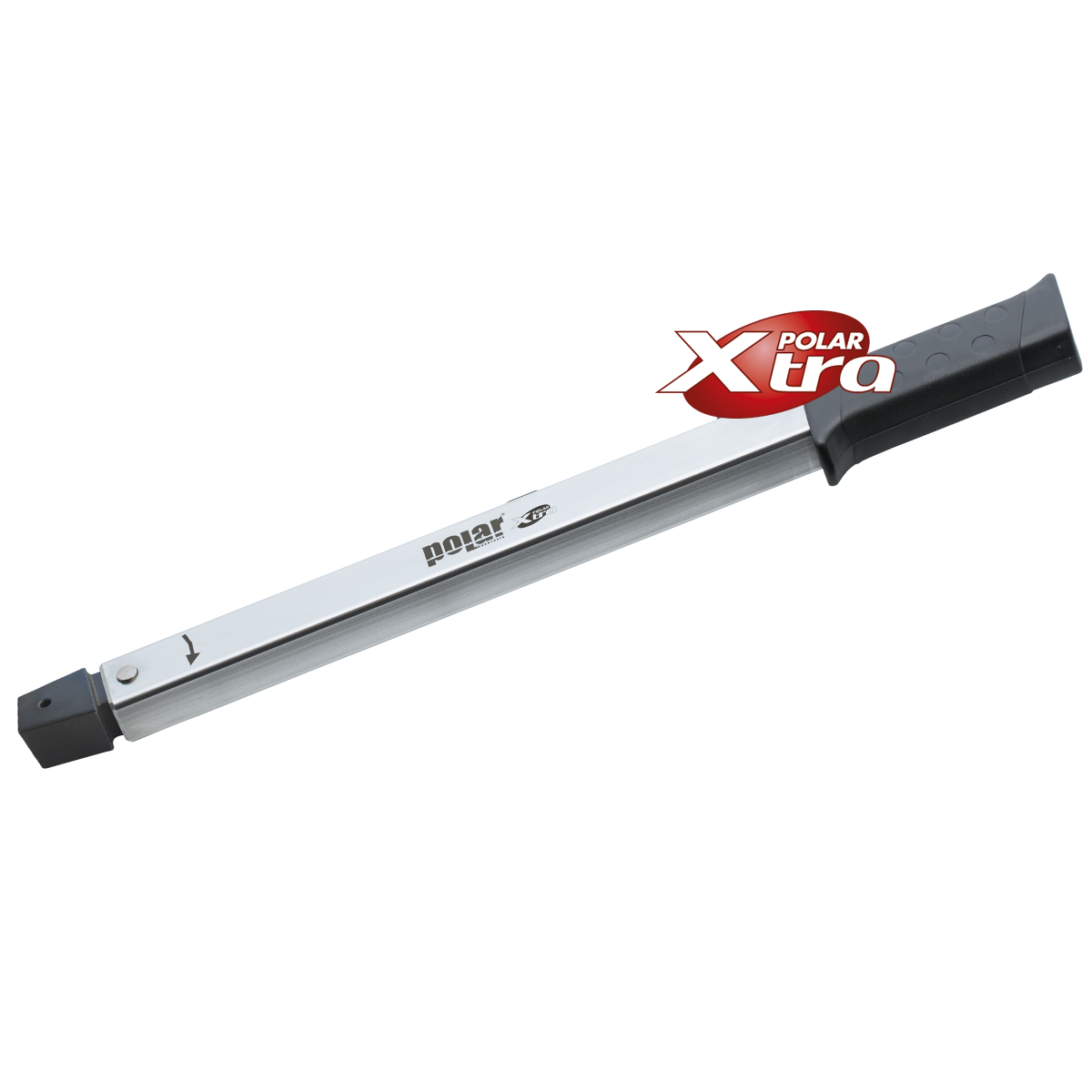

Industrial torque wrenches with interchangeable heads
Large program in various inserts.
The measuring element is only under load while force is being applied, resulting in long life accuracy and repeatability.
Accuracy: ± 3% in accordance with EN ISO 6789:2003
No need to turn back to the minimum scale value after being used.
Quick and precise slide adjustment by unscrewing the knob and pushing the slider on the scale to the required value.
Ergonomic handle.
The measuring element is only under load while force is being applied, resulting in long life accuracy and repeatability.
Accuracy: ± 3% in accordance with EN ISO 6789:2003
No need to turn back to the minimum scale value after being used.
Quick and precise slide adjustment by unscrewing the knob and pushing the slider on the scale to the required value.
Ergonomic handle.
| Insert size (B x H mm) | Item no. | Capacity Nm | L mm | Weight (kg) |
|---|---|---|---|---|
| 9 x 12 mm | 7212-3060 | 10-60 | 380 | 1,0 |
| 9 x 12 mm | 7212-3100 | 20-100 | 445 | 1,1 |
| 14 x 18 mm | 7212-3200 | 40-200 | 450 | 1,1 |
| 14 x 18 mm | 7212-3350 | 60-350 | 580 | 1,4 |
