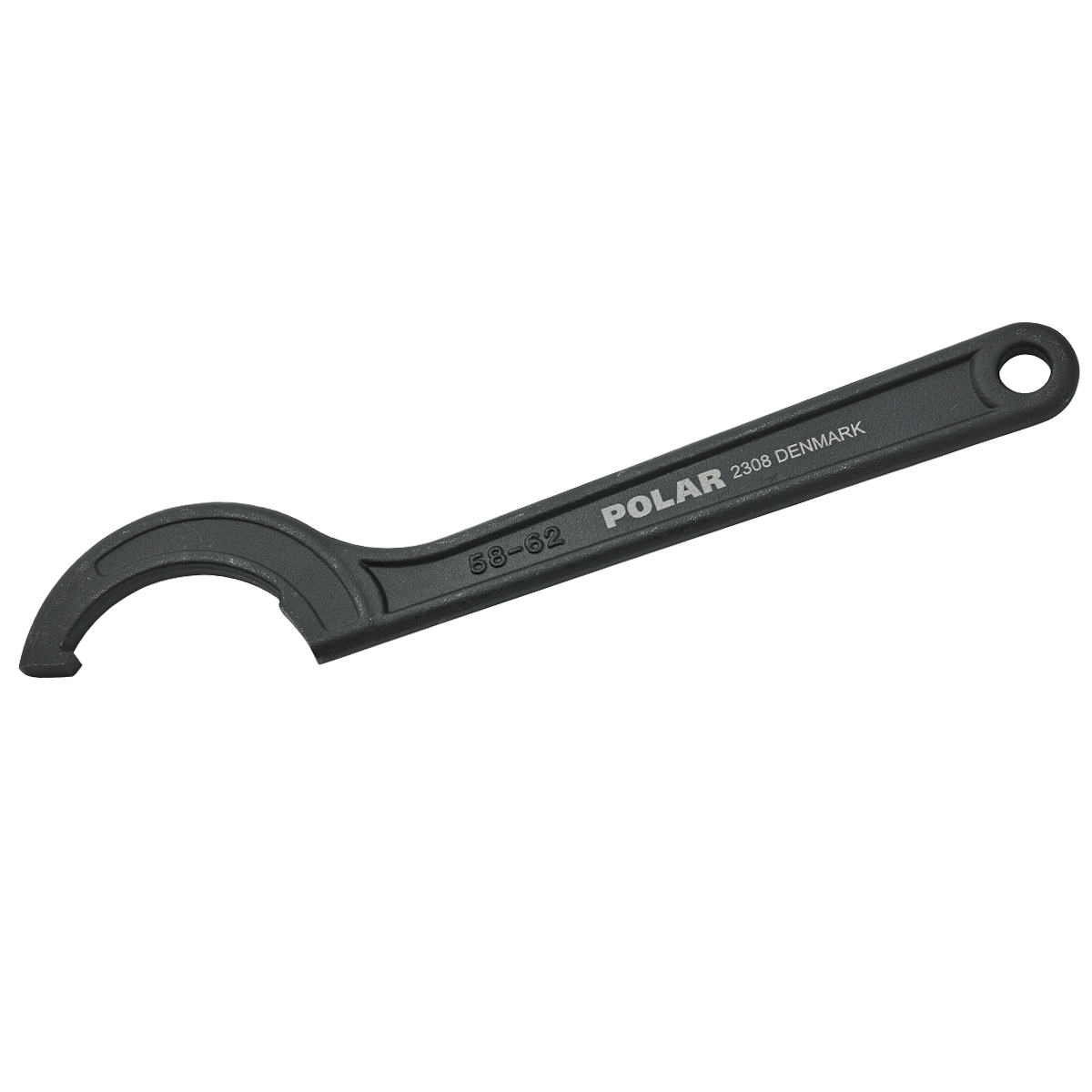

Hook wrenches
For grooved nuts to DIN 1804, bearing nuts to DIN 981
and for couplings and fittings to DIN 11851.
Surface: Phosphatised finish.
Material: Chrome-vanadium steel.
and for couplings and fittings to DIN 11851.
Surface: Phosphatised finish.
Material: Chrome-vanadium steel.
| Size mm | Item no. | A mm | B mm | L mm | Weight (g) | |
|---|---|---|---|---|---|---|
| 12-14 | 2308-0014 | 2 | 3,5 | 110 | 22 | |
| 16-20 | 2308-0020 | 2 | 3,5 | 110 | 22 | |
| 25-28 | 2308-0028 | 2 | 4,5 | 136 | 34 | |
| 30-32 | 2308-0032 | 2 | 4,5 | 136 | 34 | |
| 34-36 | 2308-0036 | 3 | 5 | 170 | 77 | |
| 40-42 | 2308-0042 | 3 | 5 | 170 | 77 | |
| 45-50 | 2308-0050 | 3 | 6,5 | 198 | 127 | |
| 52-55 | 2308-0055 | 3 | 7 | 220 | 171 | |
| 58-62 | 2308-0062 | 3,5 | 8 | 242 | 228 | |
| 68-75 | 2308-0075 | 4 | 8,5 | 262 | 286 | |
| 80-90 | 2308-0090 | 4,5 | 9 | 282 | 385 | |
| 92-100 | 2308-0100 | 5 | 9 | 282 | 393 | |
| 110-115 | 2308-0115 | 6 | 10 | 335 | 578 | |
| 120-130 | 2308-0130 | 6 | 10 | 335 | 532 |
