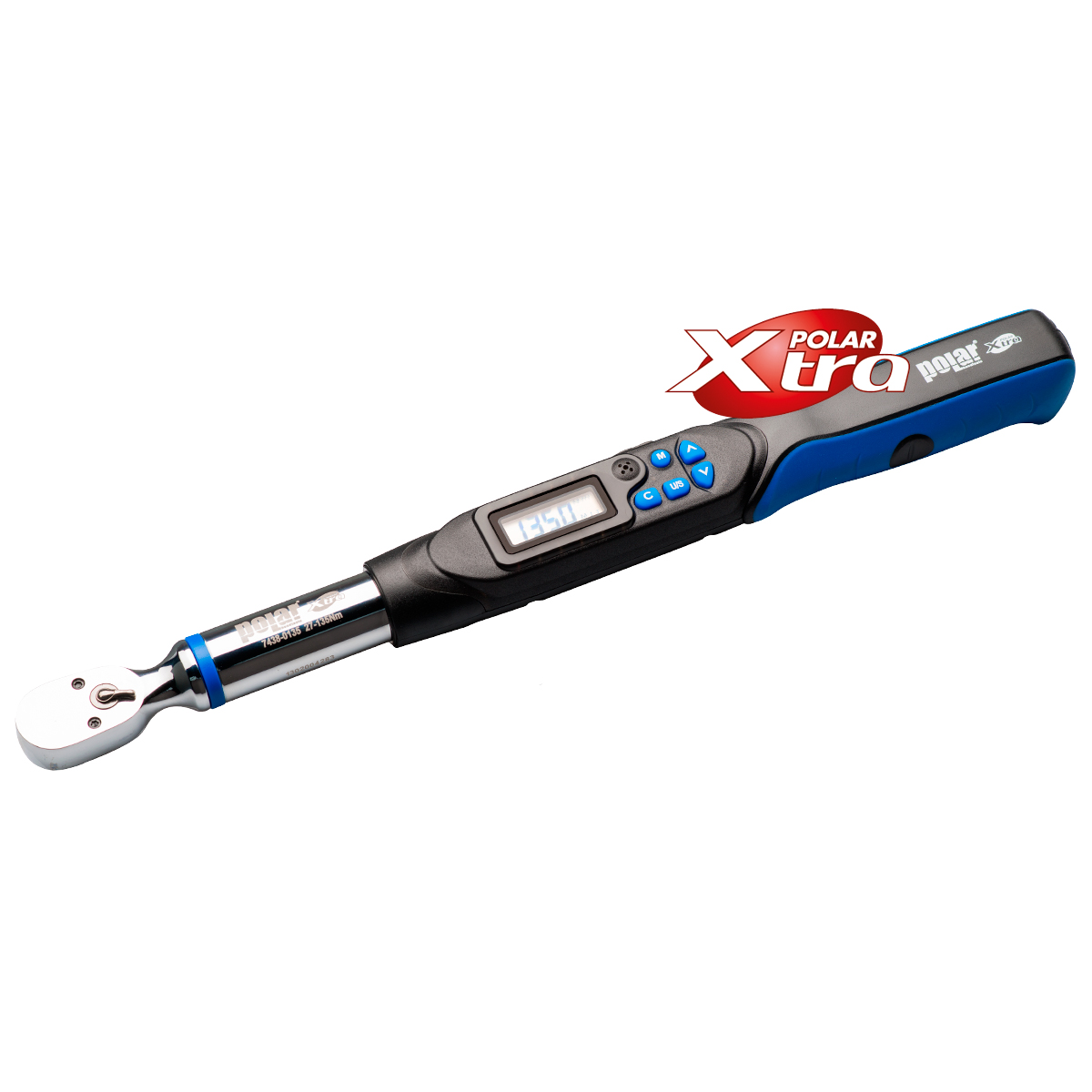

Digital torque wrenches with angle measurement

ISO 6789, DIN 3122, EN 26789
Digital torque wrench with reversible 36 teeth ratchet, for both clockwise and
counterclockwise operation.

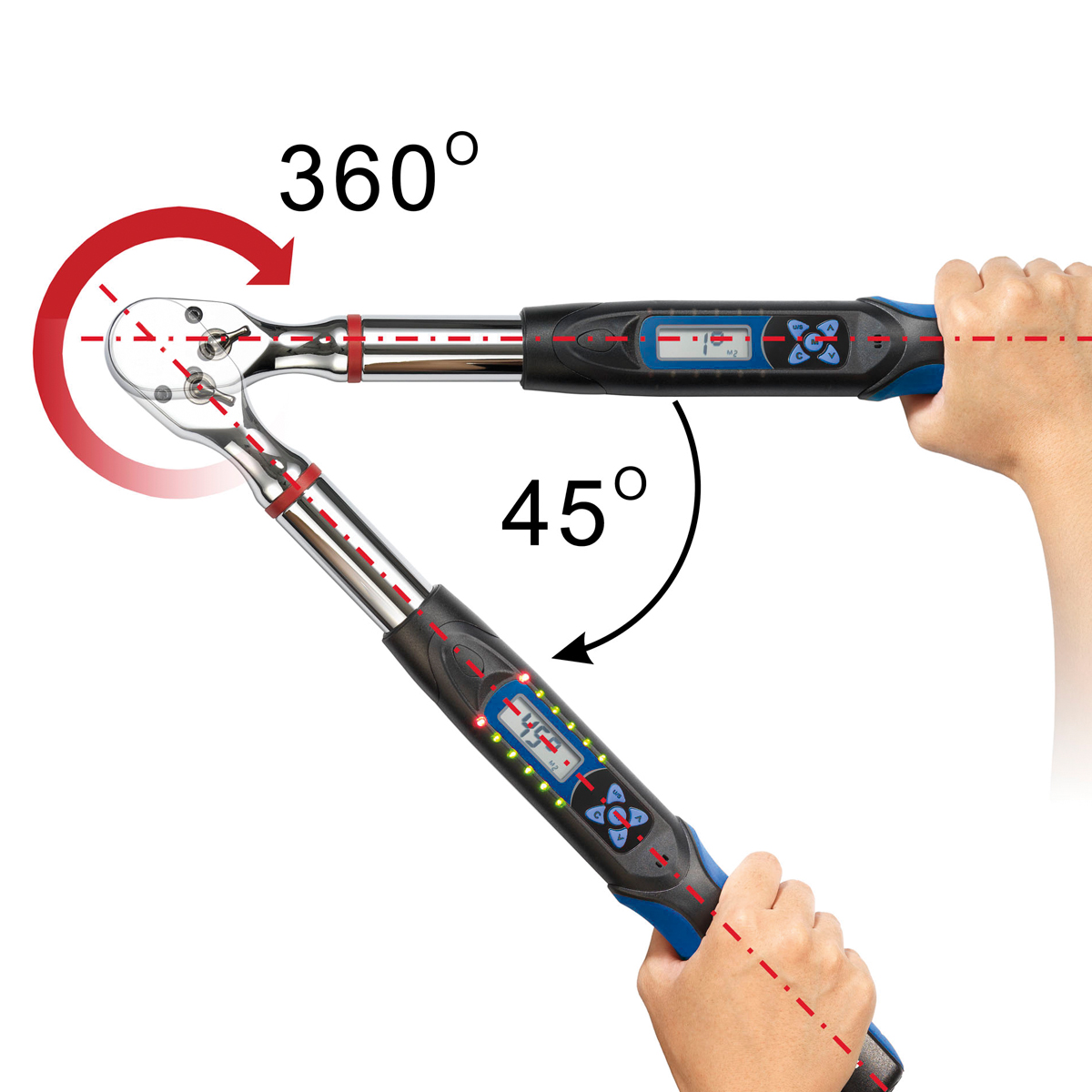

Perform torque and angle thightnings in a single-step operation.
Accuracy: ± 2% (CW) / ± 3% (CCW) from 20% to 100% of full scale and ± 2% for 90° rotation.
Operation modes: Track (shows actual torque applied), Peak (shows maximum reached torque) and Angle.
5 measuring units: Nm, kg-cm, in-lb, ft-lb and angle.

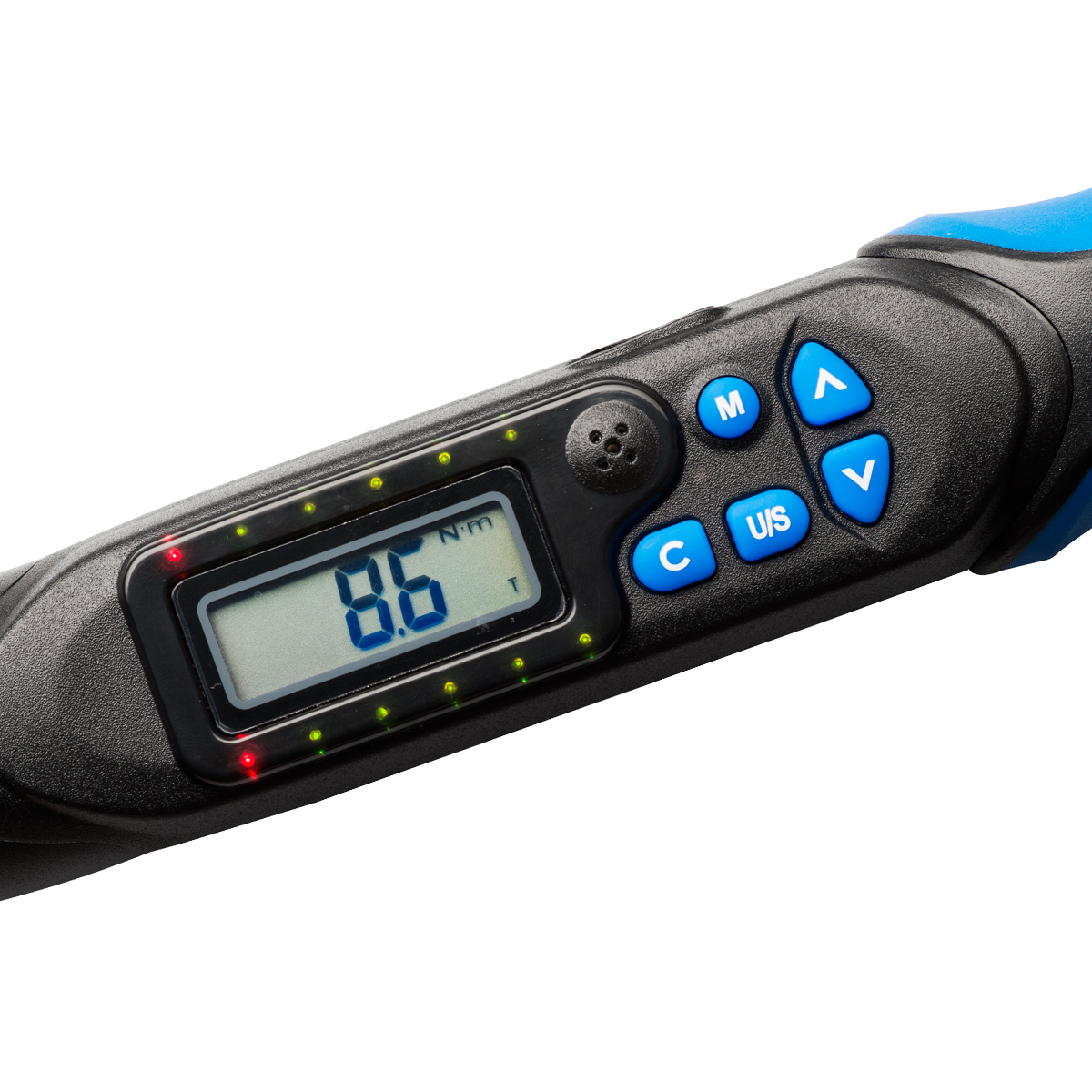

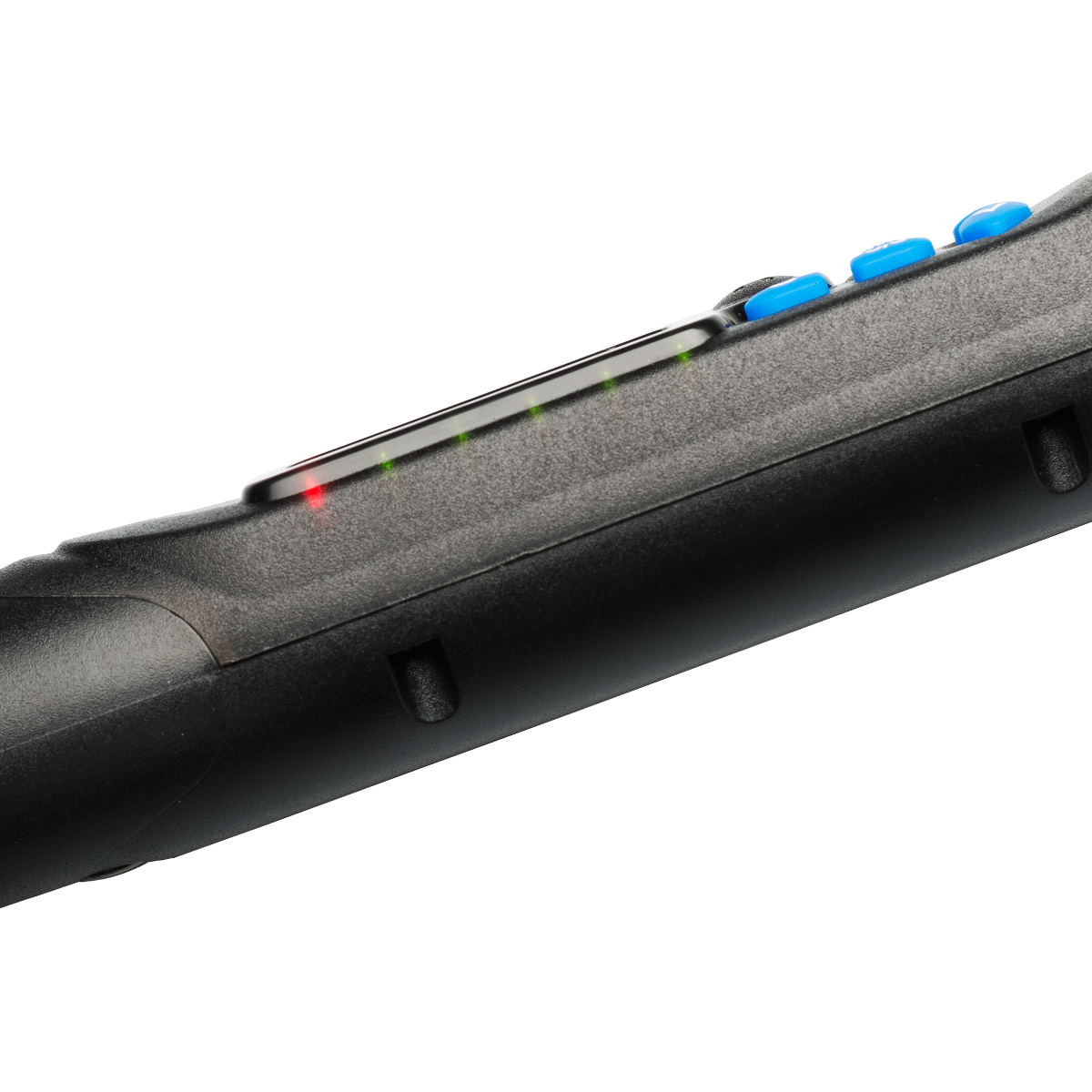

Acoustic and green/red LED signal at preset torque value.
Memory function with 9 preset torque values and 50 measurements.
Battery life (continuous operation): 110 hrs.
Operating temperature: -10°C ~ 60°C.
Storage temperature: -20°C ~ 70°C.
Comfortable, non-slip grip handle.
Humidity: Up to 90% non-condensing.
Supplied with test certificate, batteries and storage case.
Capacity Nm Item no. Increments Nm Ext. square L mm Weight (g)
6-30 7414-00300,011/4“390729
27-135 7438-01350,13/8"415901
40-200 7412-02000,11/2”5301338
68-340 7412-03400,11/2”6501509
