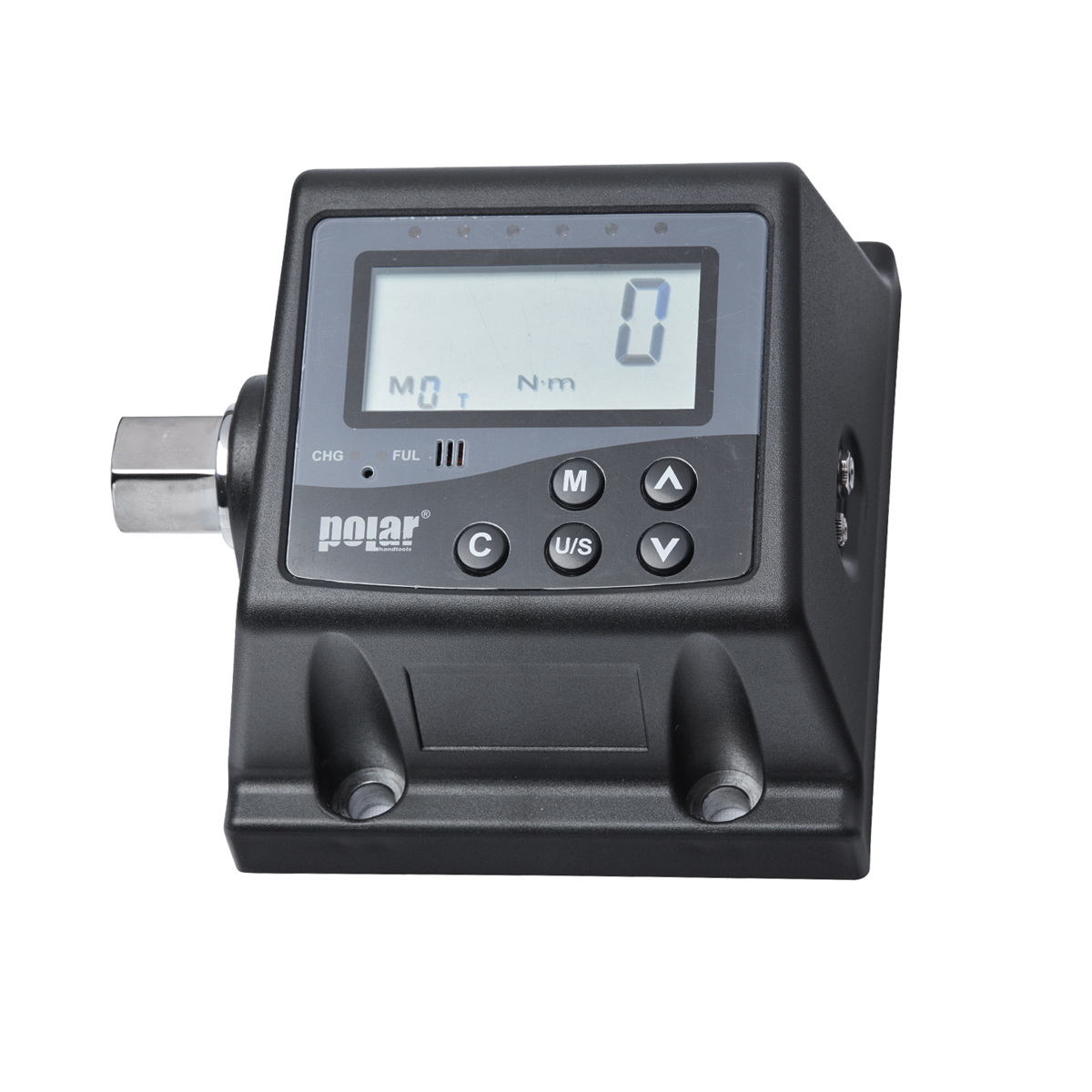

Digital Torque Measurement Tester
Torque testing instrument - click type torque wrenches (CW and CCW operations).
Three operation modes: 1st Peak, Peak and Track.
Two Torque units: Nm, and ft-lb (7780-0350 also kg-cm and in-lb).
Acoustic and green/red LED signal at preset torque value.
Memory function with 10 preset torque values and 2000 measurements.
Accuracy: ± 1% (CW / CCW)
Digital torque values data output with an USB-lead.
Operating temperature: -10°C ~ 60°C. Storage temperature: -20°C ~ 70°C.

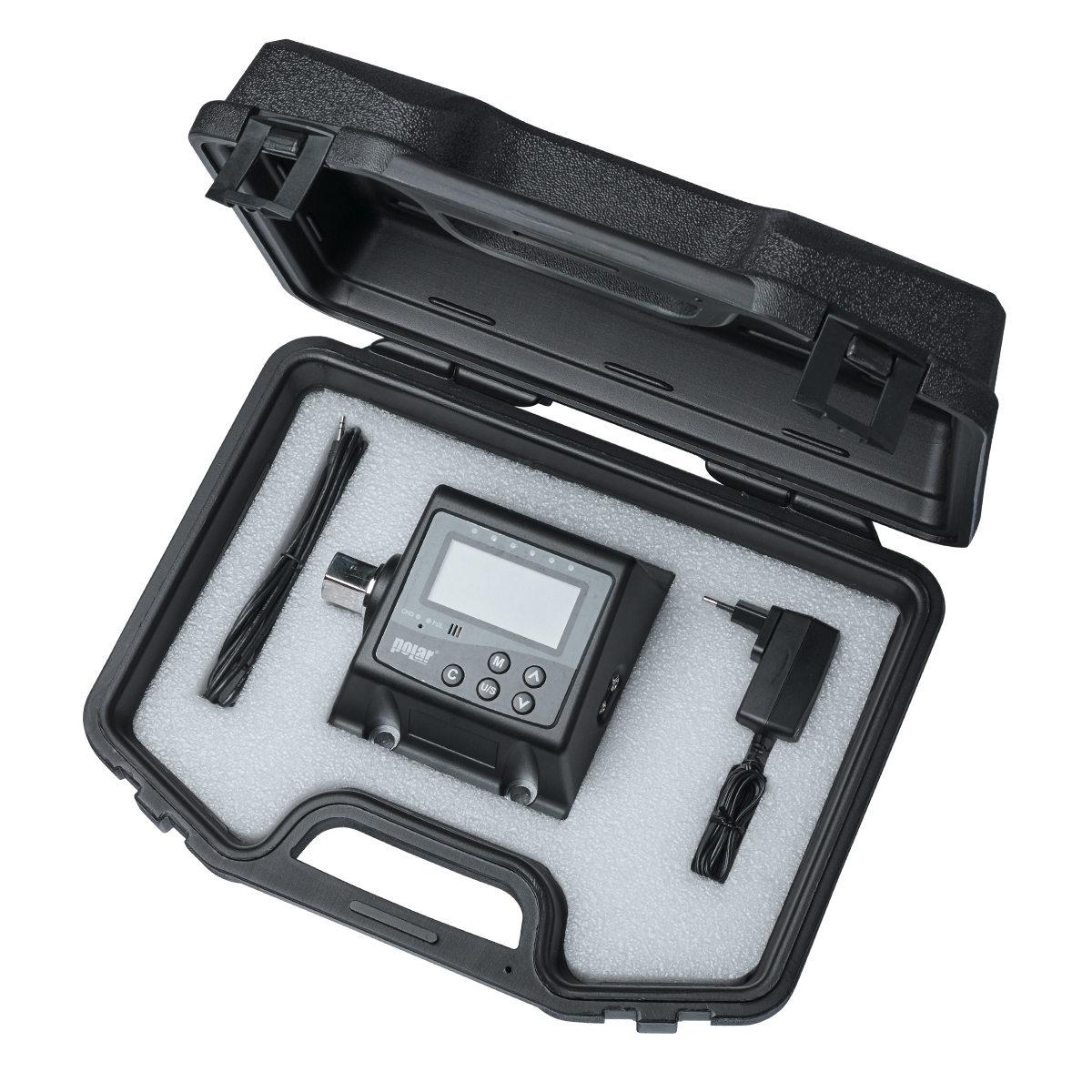

Supplied with USB-lead, software, test certificate and storage case.
Three operation modes: 1st Peak, Peak and Track.
Two Torque units: Nm, and ft-lb (7780-0350 also kg-cm and in-lb).
Acoustic and green/red LED signal at preset torque value.
Memory function with 10 preset torque values and 2000 measurements.
Accuracy: ± 1% (CW / CCW)
Digital torque values data output with an USB-lead.
Operating temperature: -10°C ~ 60°C. Storage temperature: -20°C ~ 70°C.
Supplied with USB-lead, software, test certificate and storage case.
| Capacity Nm | Item no. | Increments Nm | Ext. square | Male Hexagon mm | Weight (g) |
|---|---|---|---|---|---|
| 35-350 | 7780-0350 | 0.1 | 1/2” | x | 4500 |
| 100-1000 | 7780-1000 | 1 | x | 27 | 4900 |
| 200-2000 | 7780-2000 | 1 | x | 27 | 5100 |
