Digital torque and angle adapters
ISO-6789

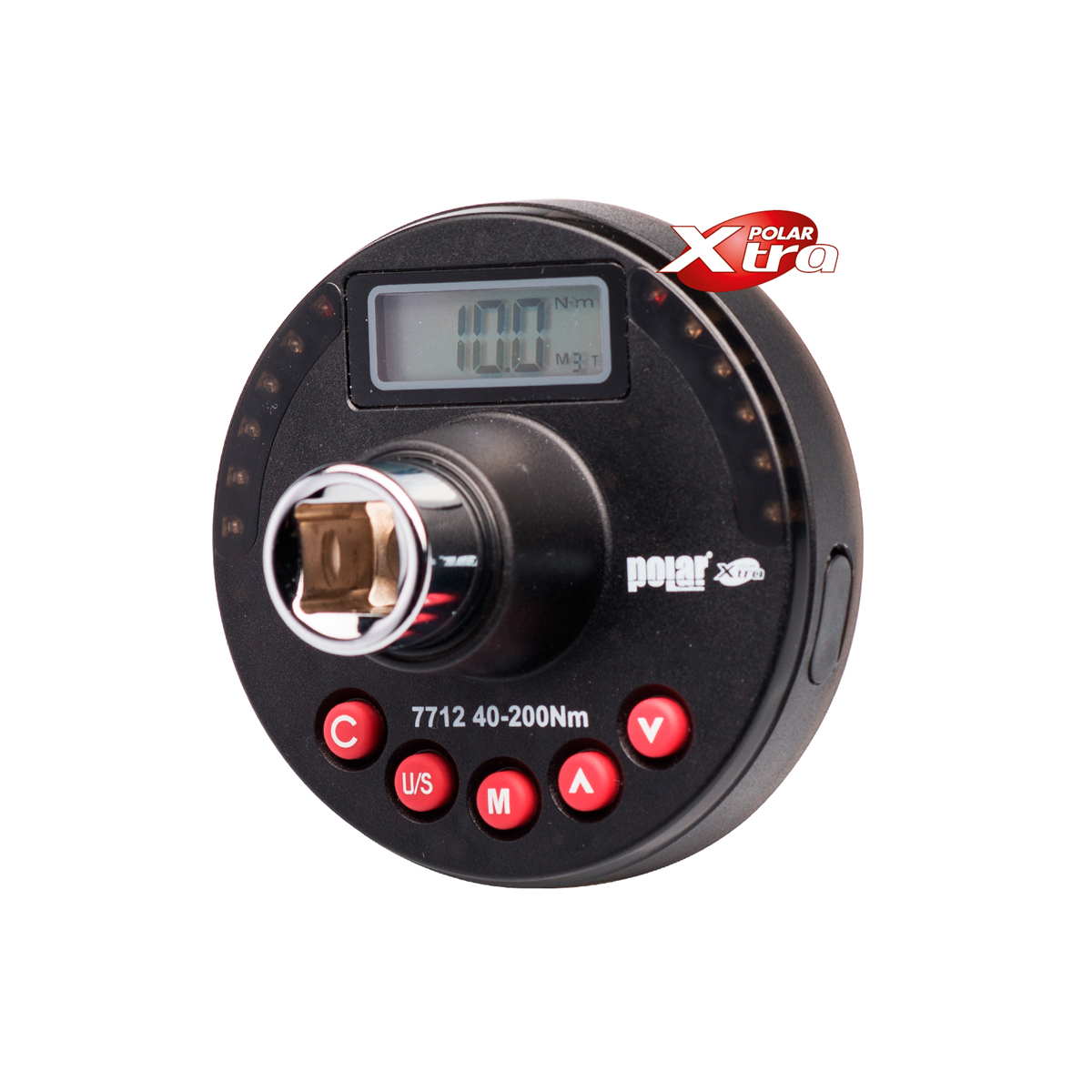

Digital torque and angle adapter, for both clockwise and counterclockwise operation.
Perform torque and angle tightenings in a single-step operation, using any tightening tool.
The adapter can be used for verifying any mechanical torque wrench accuracy.
Accuracy: ± 3% from 20% to 100% of full scale and ± 2% for 90° rotation.
Operation modes: Track (shows actual torque applied), Peak (shows maximum
reached torque) and Angle.
5 measuring units: Nm, kg-cm, in-lb, ft-lb and angle.
Acoustic and green/red LED signal at preset torque value.
Memory function with 9 preset torque values and 50 measurements.
Battery life (continuous operation): 110 hrs.
Operating temperature: -10°C ~ 60°C. Storage temperature: -20°C ~ 70°C.
Humidity: Up to 90% non-condensing.
Supplied with test certificate, batteries and storage case.
Digital torque and angle adapter, for both clockwise and counterclockwise operation.
Perform torque and angle tightenings in a single-step operation, using any tightening tool.
The adapter can be used for verifying any mechanical torque wrench accuracy.
Accuracy: ± 3% from 20% to 100% of full scale and ± 2% for 90° rotation.
Operation modes: Track (shows actual torque applied), Peak (shows maximum
reached torque) and Angle.
5 measuring units: Nm, kg-cm, in-lb, ft-lb and angle.
Acoustic and green/red LED signal at preset torque value.
Memory function with 9 preset torque values and 50 measurements.
Battery life (continuous operation): 110 hrs.
Operating temperature: -10°C ~ 60°C. Storage temperature: -20°C ~ 70°C.
Humidity: Up to 90% non-condensing.
Supplied with test certificate, batteries and storage case.
| Capacity Nm | Item no. | Increments Nm | 6-point | Size mm | Weight (g) |
|---|---|---|---|---|---|
| 6-30 | 7714-0030 | 0,01 | 1/4” | 85 x 85 x 60 | 163 |
| 27-135 | 7738-0135 | 0,1 | 3/8" | 85 x 85 x 75 | 216 |
| 40-200 | 7712-0200 | 0,1 | 1/2" | 85 x 85 x 80 | 240 |
| 68-340 | 7712-0340 | 0,1 | 1/2" | 85 x 85 x 80 | 240 |
