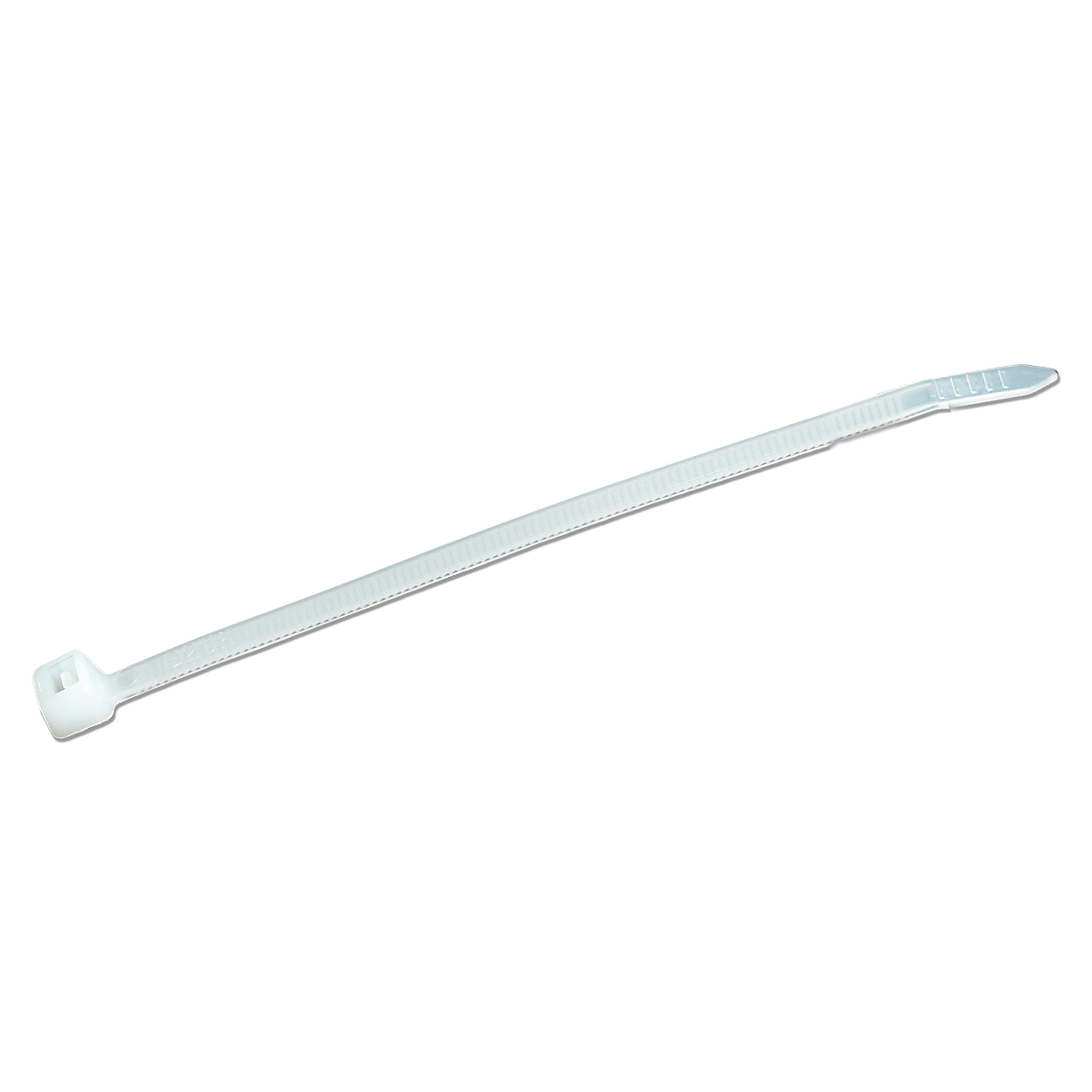

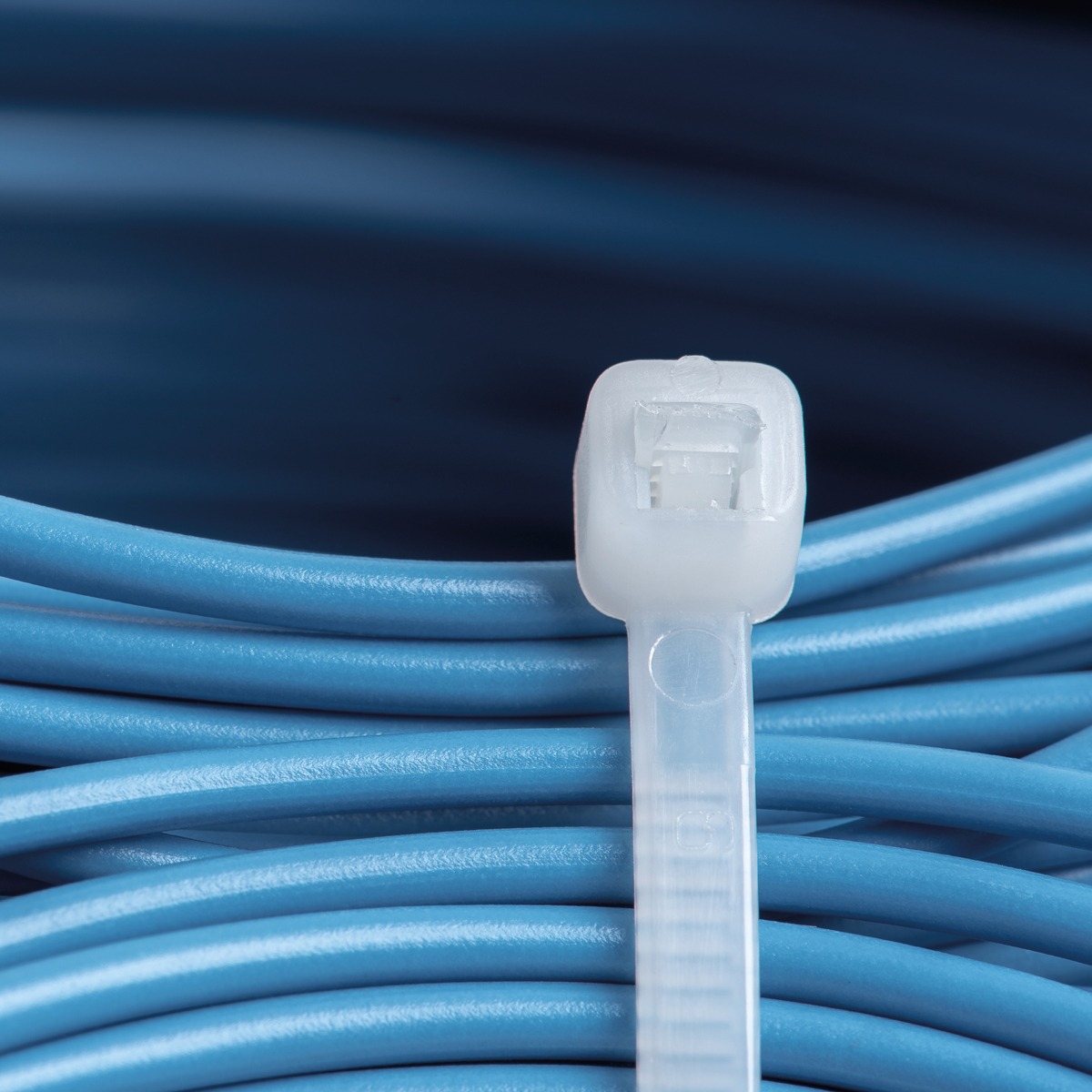

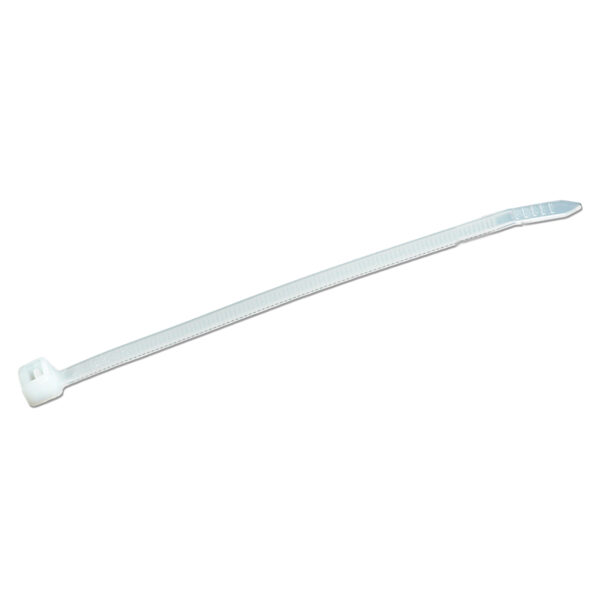

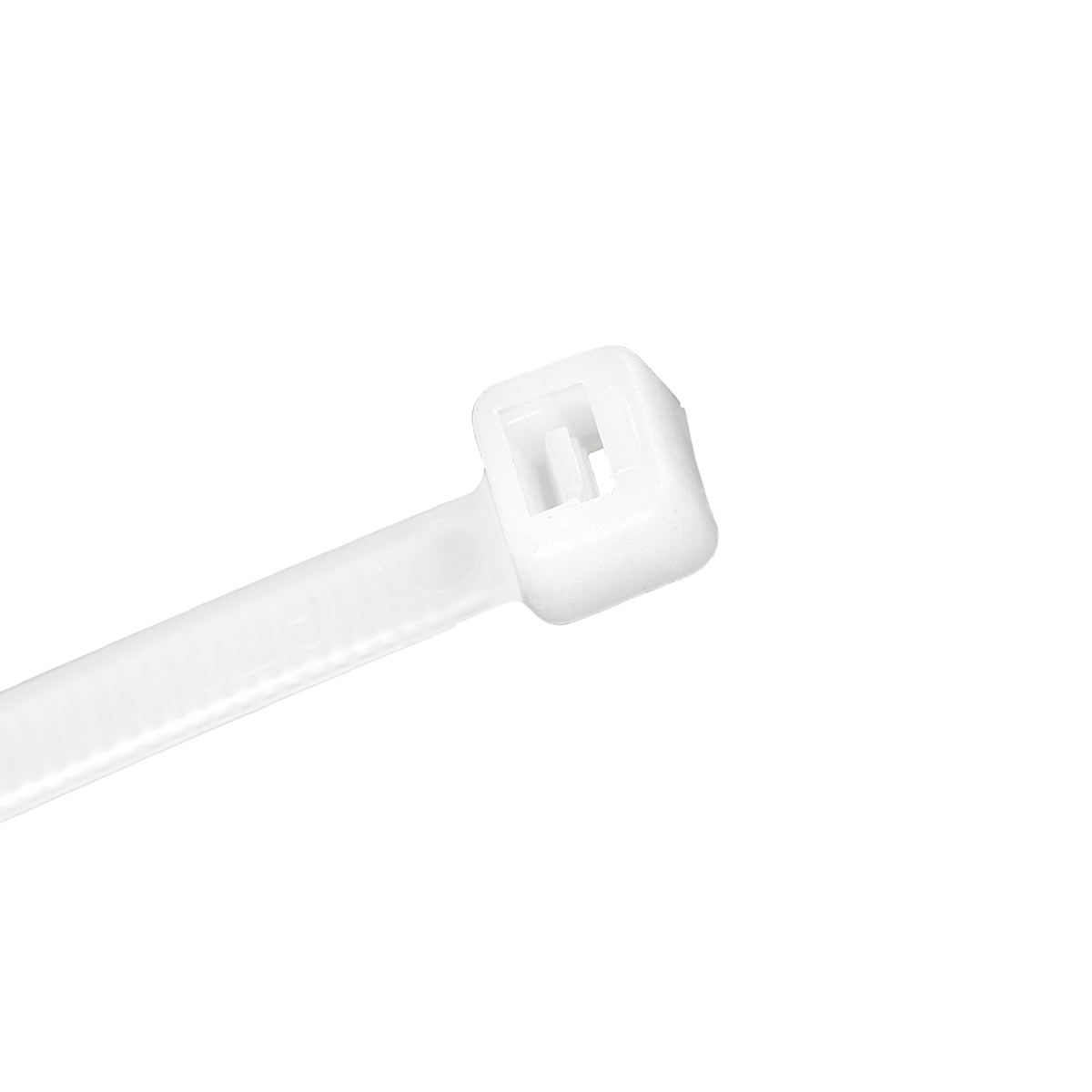

Cable ties – standard (100 pcs.)
UL Flame rating: 94V-2
Material: Nylon 66 / Polyamide 66
Operating temperature: -40°C ~ 85°C.
Good resistance to bases, oils, greases, oil derivates and chloride solvents.
Limited resistance to acids.
Not resistant to phenols.
Material: Nylon 66 / Polyamide 66
Operating temperature: -40°C ~ 85°C.
Good resistance to bases, oils, greases, oil derivates and chloride solvents.
Limited resistance to acids.
Not resistant to phenols.
| A x L mm | Item no. | Ø Max. mm | Min. loop tensile strength kg | Quantity (pcs.) |
|---|---|---|---|---|
| 2,5 x 100 | 9605-0005 | 22 | 8,1 | 100 |
| 2,5 x 150 | 9605-0010 | 36 | 8,1 | 100 |
| 2,5 x 200 | 9605-0015 | 53 | 8,1 | 100 |
| 3,6 x 140 | 9605-0020 | 33 | 18,2 | 100 |
| 3,6 x 200 | 9605-0025 | 53 | 18,2 | 100 |
| 3,6 x 300 | 9605-0030 | 76 | 18,2 | 100 |
| 4,6 x 180 | 9605-0035 | 43 | 22,2 | 100 |
| 4,8 x 200 | 9605-0040 | 50 | 22,2 | 100 |
| 4,8 x 300 | 9605-0045 | 76 | 22,2 | 100 |
| 4,8 x 370 | 9605-0050 | 102 | 22,2 | 100 |
| 4,8 x 500 | 9605-0053 | 145 | 22,2 | 100 |
| 7,6 x 250 | 9605-0055 | 67 | 54,4 | 100 |
| 7,6 x 370 | 9605-0060 | 103 | 54,4 | 100 |
| 7,6 x 540 | 9605-0065 | 159 | 54,4 | 100 |
| 7,6 x 750 | 9605-0067 | 218 | 54,4 | 100 |
| 8,8 x 750 | 9605-0070 | 218 | 80,0 | 100 |
| 12,4 x 650 | 9605-0080 | 195 | 114,0 | 100 |
