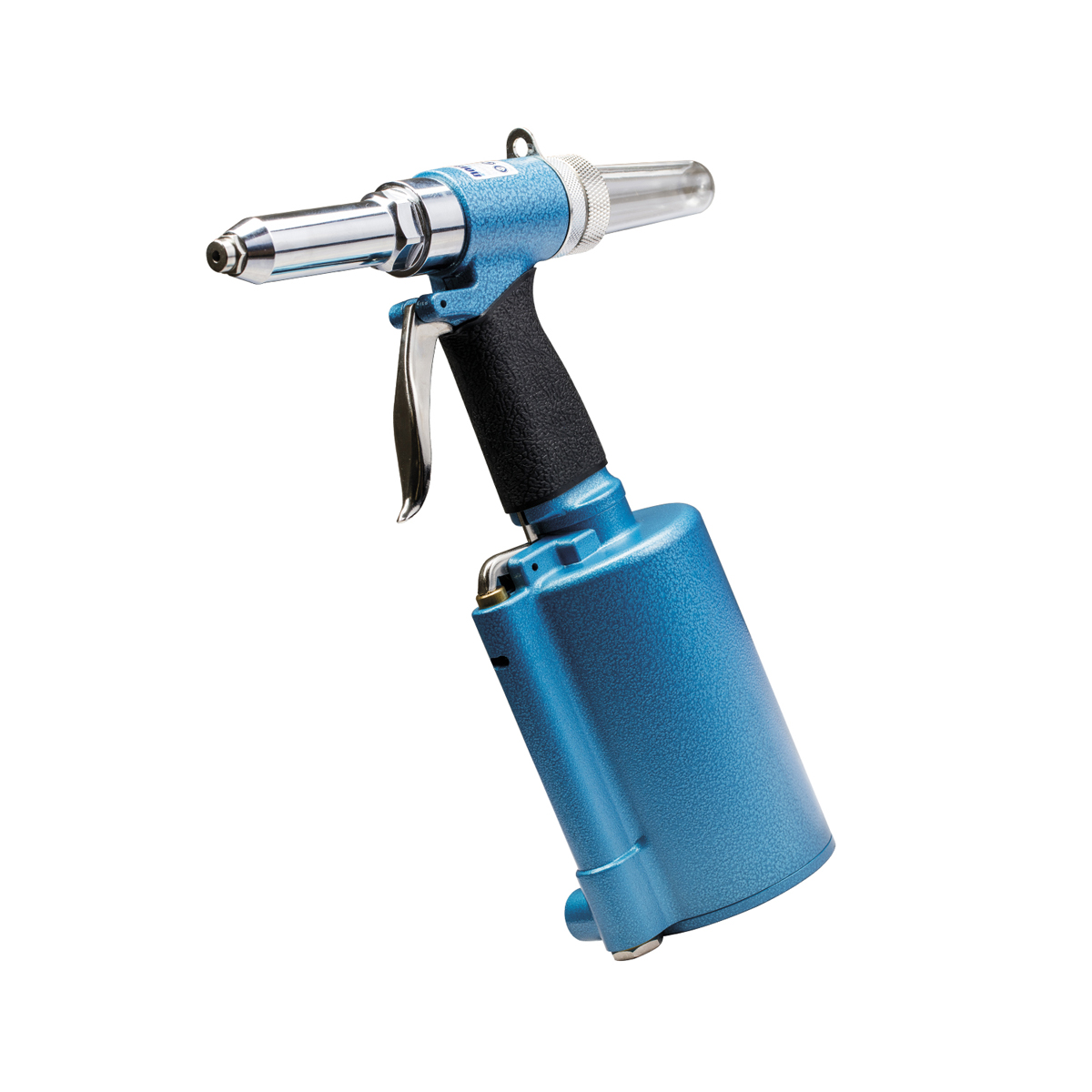

1/4” Heavy-duty air hydraulic riveter

Lightweight cast aluminum body.
Machined chrome plated steel nosepiece.
Air relief valve prevents overloading.
Safety cap collects spent rivet pins.

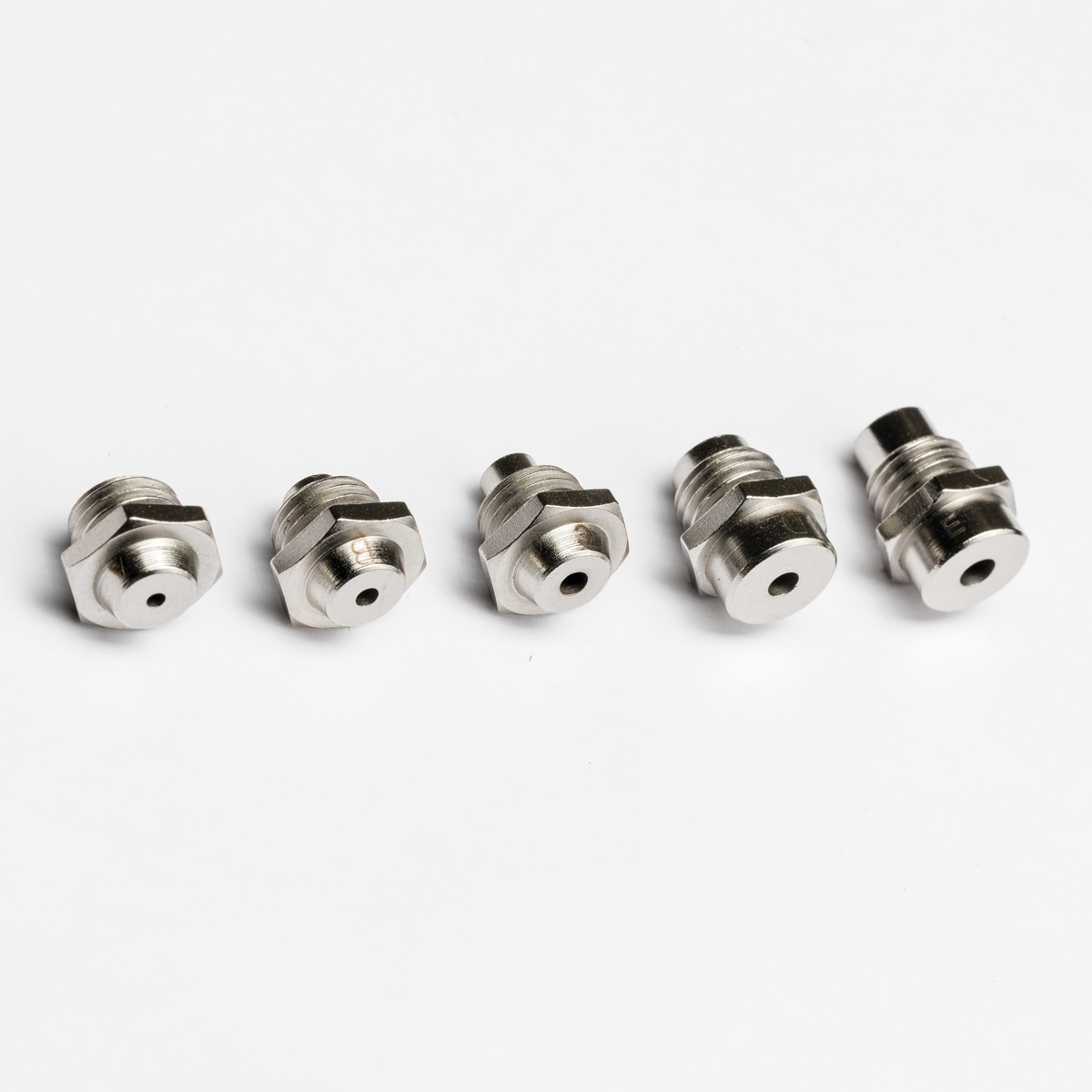

Nose pieces in 2.4 - 3.2 - 4.0 - 4.8 - 5.6 and 6.4 mm
Rivet material: Aluminium, steel and stainless steel.

Technical data:
Tool stroke: 16 mm
Traction power: 1894 kg
Air inlet: 1/4”
Rivet capacity: 2.4 - 6.4 mm (3/32” - 1/4”)
Hose size: 1/2” (13 mm)
Sound pressure: 81,2 db(A)
Sound power: 92,1 db(A)
Vibration level: 0,6 m/s2
Recommended air pressure: 5,5 - 6,9 bar (depend on rivet material).
